Product Description
Model
BD/BC-135Q
BD/BC-170Q
BD/BC-210Q
BD/BC-258Q
BD/BC-308Q
Available Capacity
135L
170L
210L
258L
308L
Freezer volume
135L
170L
210L
258L
308L
Load temperature
-25℃
-25℃
-25℃
-25℃
-25℃
Outer rotor compressor
30DC
35DC
35DC
35DC
45DC
Refrigerant
R134a
R134a
R134a
R134a
R134a
Input voltage
DC12/24V
DC12/24V
DC12/24V
DC12/24V
DC12/24V
Input power
55W
60W
62W
65W
72W
Foaming
Cyclopentane
Cyclopentane
Cyclopentane
Cyclopentane
Cyclopentane
Product size
825×675×740mm
825×675×840mm
825×675×940mm
1105×675×840mm
1105×675×940mm
Dimension
845×730×770mm
845×730×870mm
845×730×970mm
1130×730×870mm
1130×730×970mm
N.W./G.W.
37kg/41kg
37kg/41kg
45kg/50kg
49kg/54kg
55kg/61kg
Loading-Units 40’HQ
132pcs
132pcs
108pcs
96pcs
88pcs
Quality of machine
one years
one years
one years
one years
one years
Quality of compressor
three years
three years
three years
three years
three years
Insulation thickness
90mm(Energy saving)
90mm(Energy saving)
90mm(Energy saving)
90mm(Energy saving)
90mm(Energy saving)
Solar Panels
150W(Effective sunshine 9-10 hours)
200W(Effective sunshine 9-10 hours)
200W(Effective sunshine 9-10 hours)
200W(Effective sunshine 9-10 hours)
250W(Effective sunshine 9-10 hours)
Lithium iron phosphate battery
120Ah(Working hours 24 hours)
150Ah(Working hours 26-28 hours)
150Ah(Working hours 24-26 hours)
150Ah(Working hours 24 hours)
200Ah(Working hours 24-28 hours)
- Product performance description

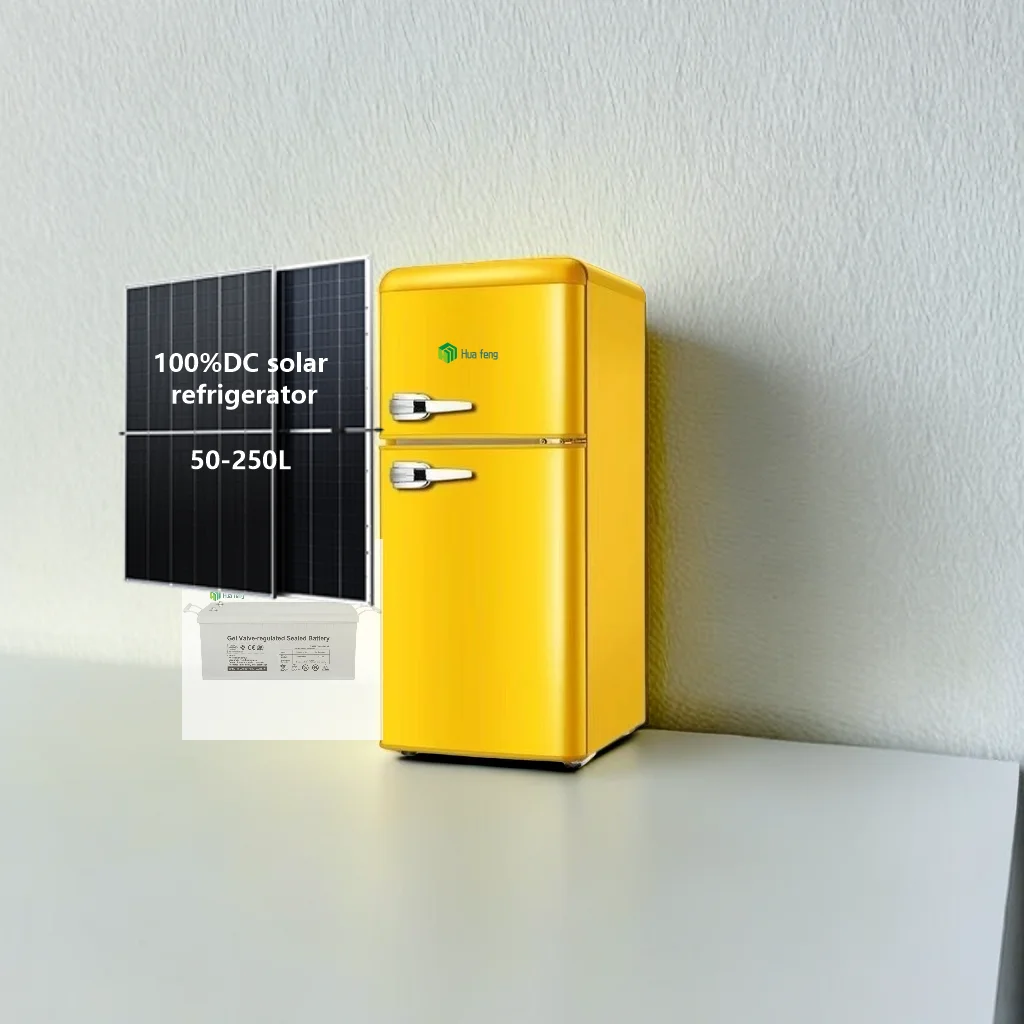

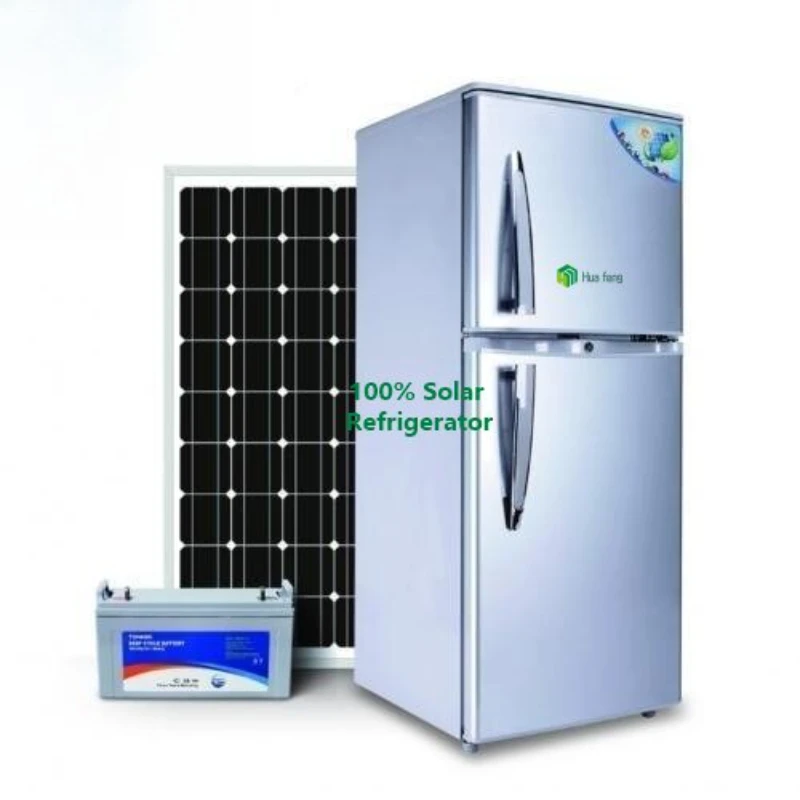

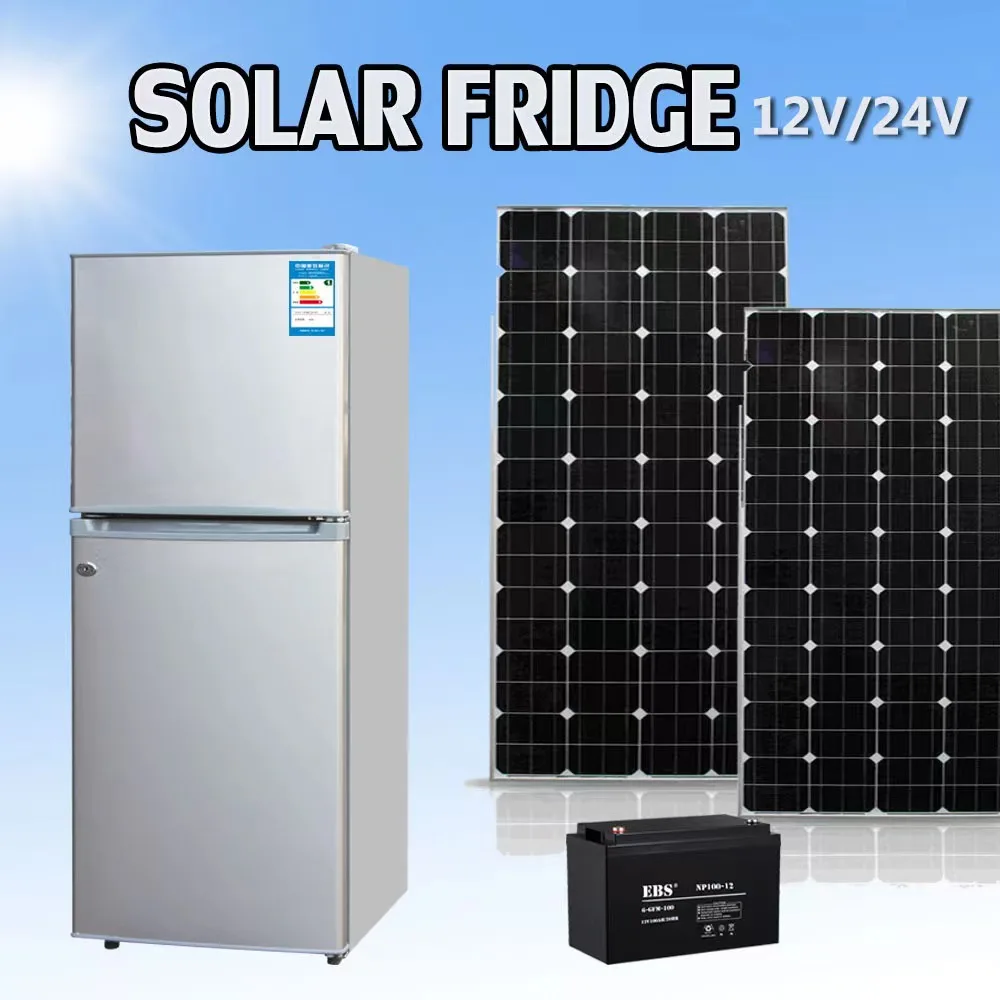

Top Freezer 12V 24V DC Solar Powered Refrigerator Fridge.
*. Cooling performance: 0-10℃: fridge compartment, -18℃: the freezer compartment *. Auto turn off at low voltage

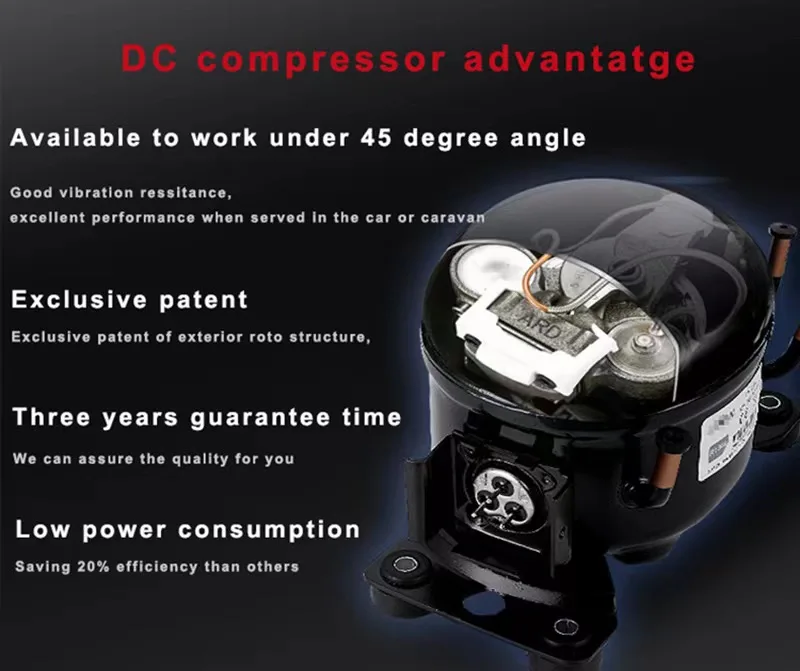

*. With DC Compressor
*. High Temperature Resistent
*. Mechanical Temperature Controller *. Two Wheels for convenient transportation

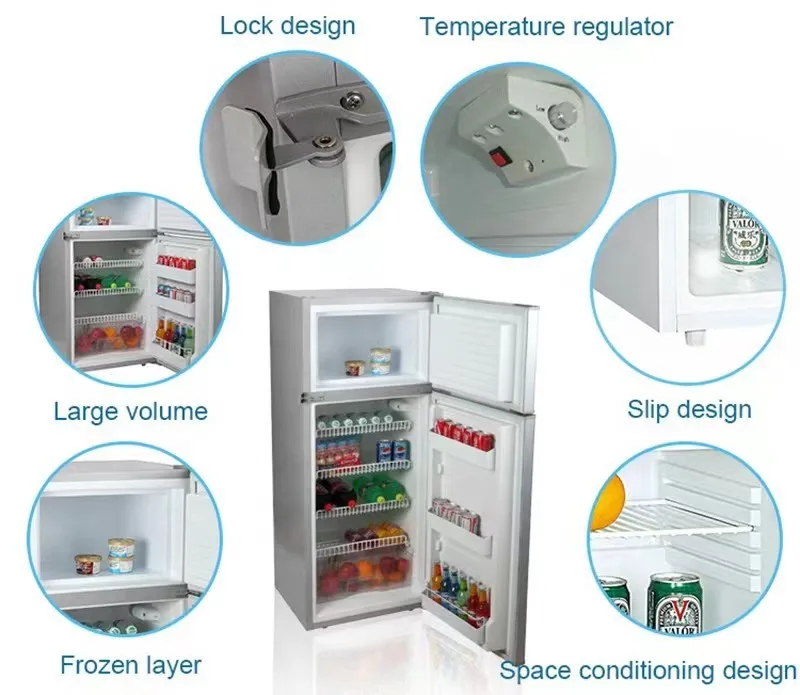

Details Images

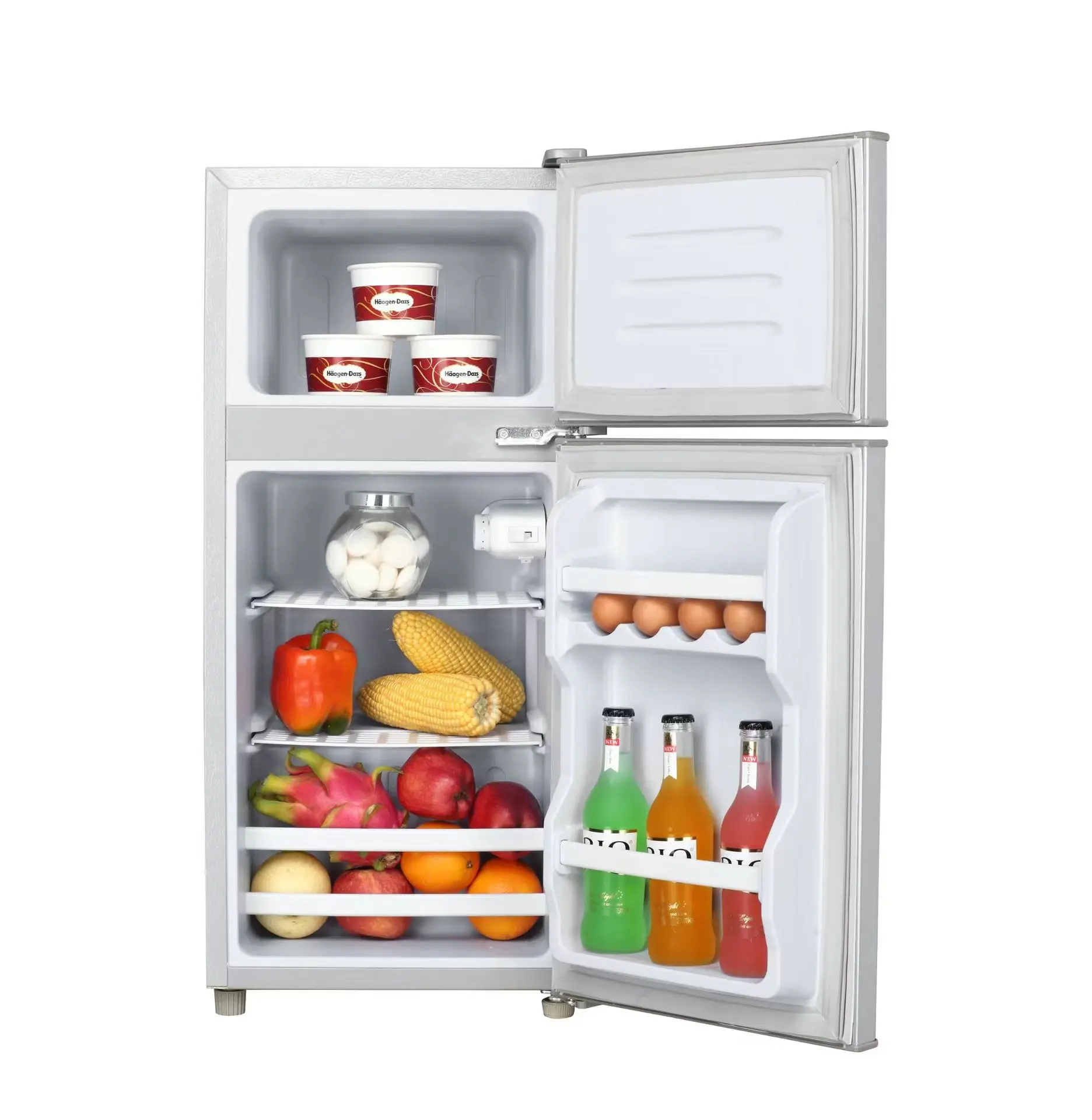

Top Freezer 12V 24V DC Solar Powered Refrigerator Fridge.

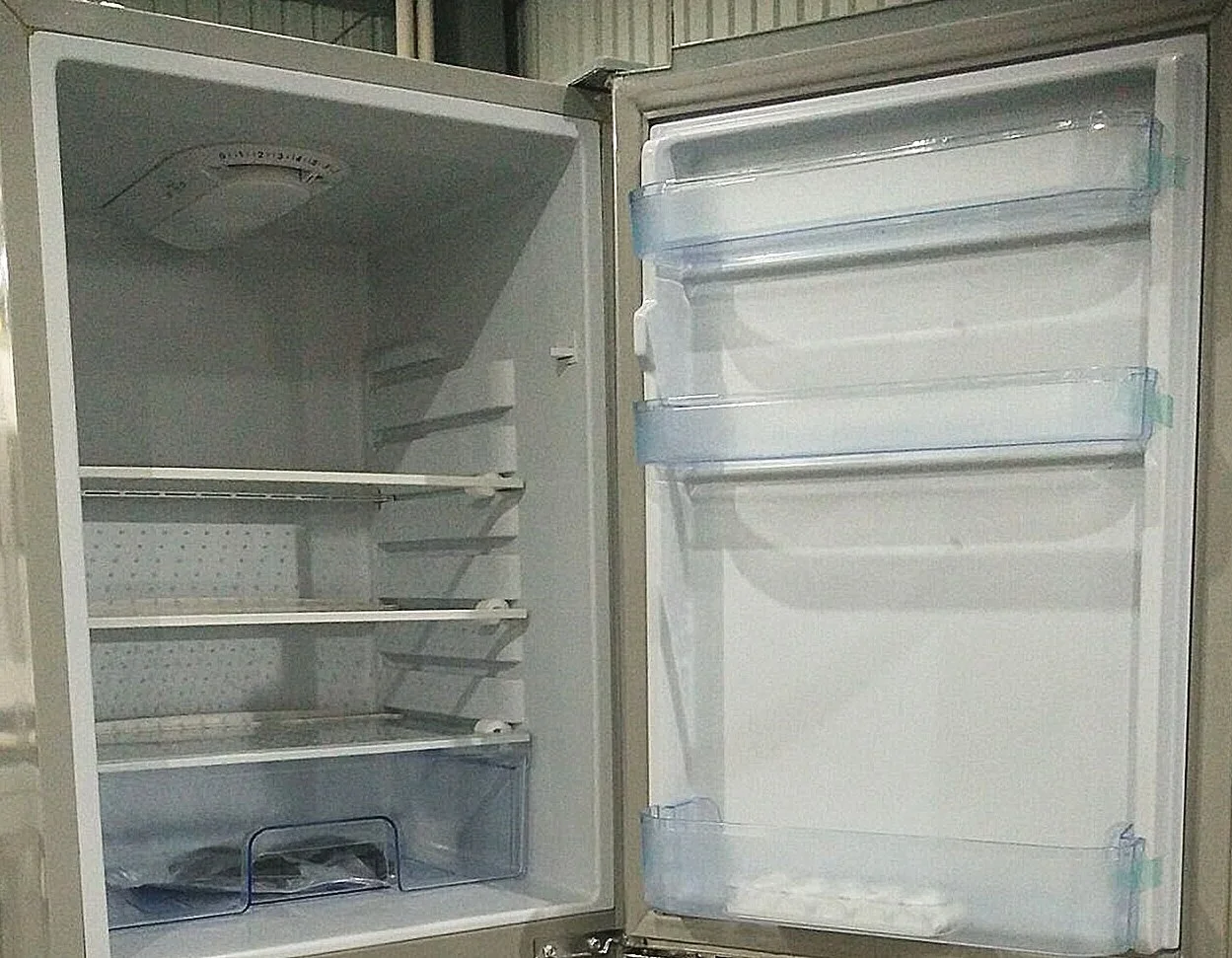

*. Adjustable Glass Shelf – To Creat Different Storage Space
*. Large Bottle Rack – For Large Gallon Bottles
*. With Fruit & Vege. Crisper – For Fresh & Odorless Storage
* Mechanical Thermostat – Adjust due to different environment temperature
* Anti-Rat Rear Cover
– On Back Bottom Side
– Protect circuit from rats
The solar semiconductor refrigerator mainly includes a solar cell array, a controller, a storage battery and a semiconductor refrigeration device. The solar cell array is located on the sun-irradiated surface or the top surface of the refrigerator.
Product Usage
- Product usage introduction
through the connection, one end is connected to the controller set on the front side of the refrigerator, and the controller is connected to the hot end of the semiconductor refrigerating device on the other side of the refrigerator, and the other end is directly connected to the cold end of the semiconductor refrigerating device. One end of the storage battery in the refrigerator is connected to the controller, and the other end is connected between the solar cell array and the controller
- Description of product use effect
Solar photovoltaic refrigerators mainly include solar photovoltaic refrigerators and solar semiconductor refrigerators. Solar photovoltaic refrigerators are developed on the basis of ordinary traditional compression refrigerators, and are composed of solar cells, controllers, batteries and refrigerators.
