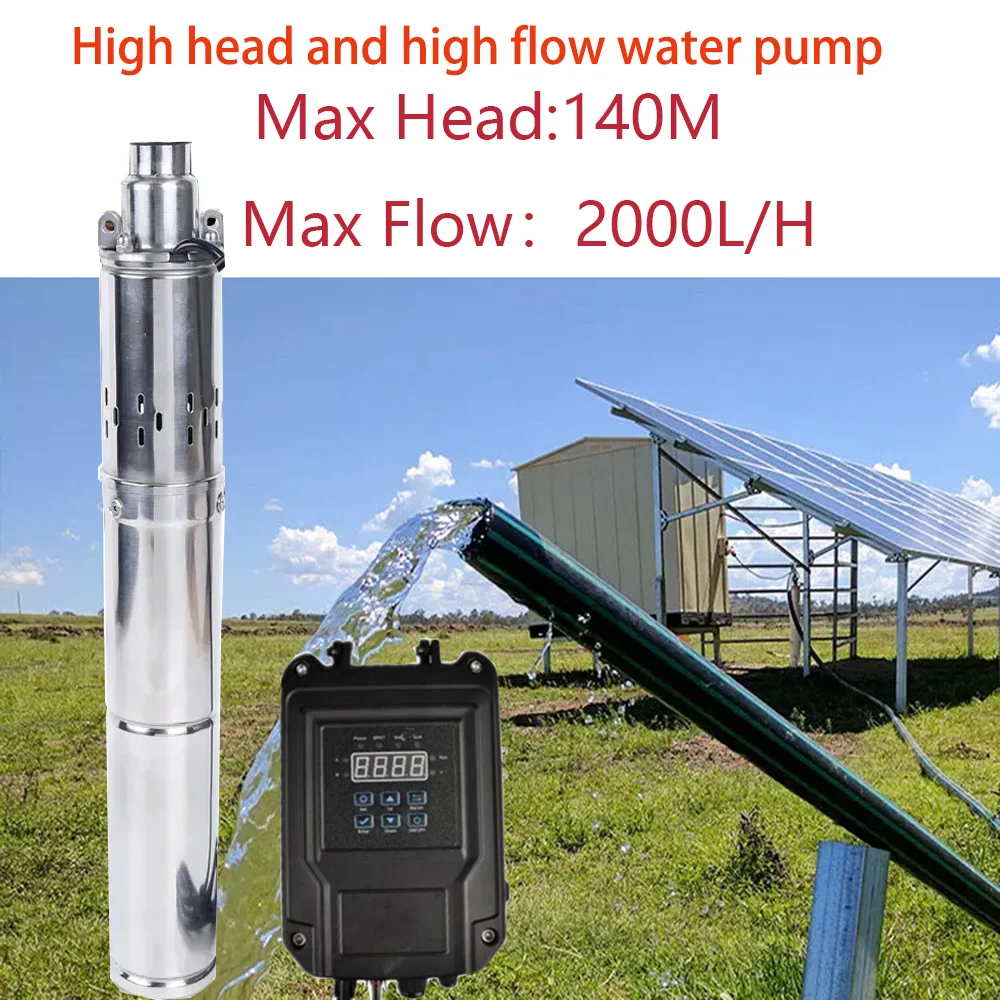

750W Solar water pump with MPPT controller Max Head 140M With liquid level sensor kit solar DC brushless water pump 2000L/H – AliExpress
Buy 750W Solar water pump with MPPT controller Max Head 140M With liquid level sensor kit solar DC brushless water pump 2000L/H at Aliexpress for . Find more , and products. Enjoy ✓Free Shipping Worldwide! ✓Limited Time Sale ✓Easy Return.
₦460,000.00

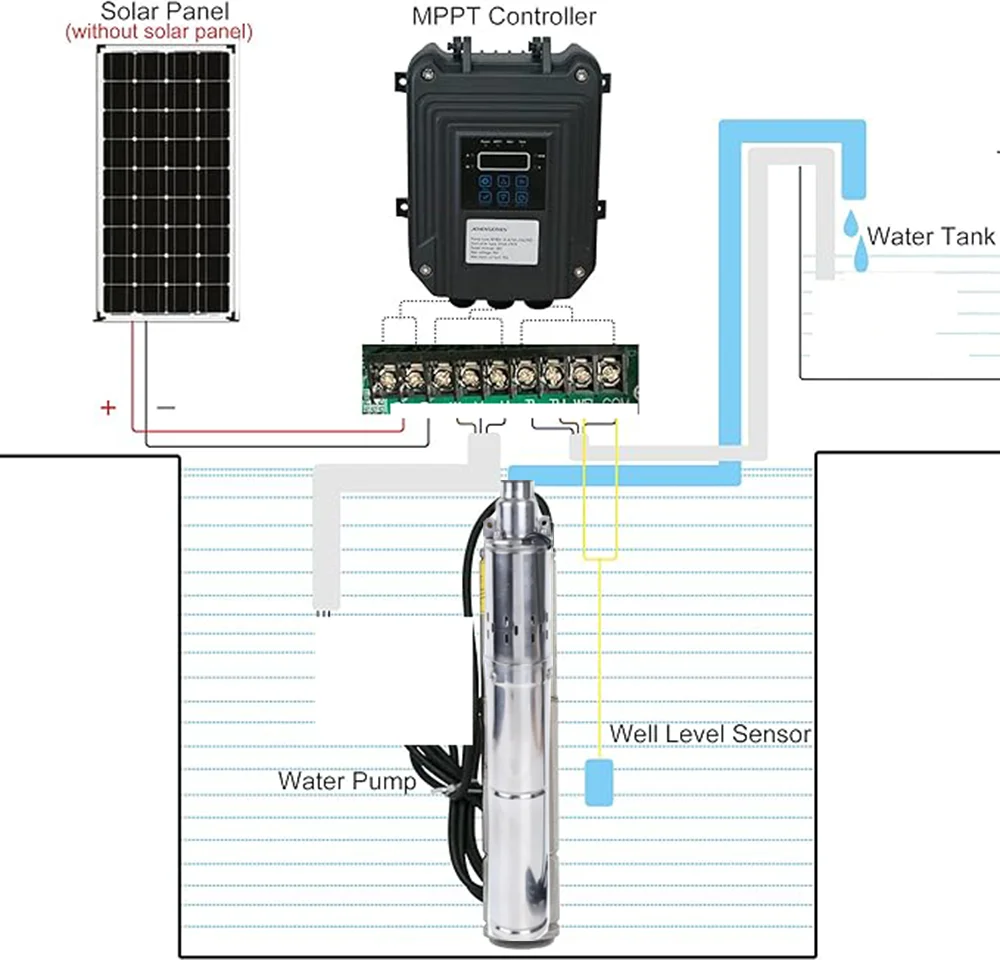

The following video shows how to install the controller,
1； Please connect the three UVW wires on the water pump to the corresponding controller UVW
2； Connect the positive and negative poles of the solar panel to P+and P in the controller-
3； After following the correct connection steps above, the water pump will now be operational
Solar Pump Parameter
Solar pump Parameter and How to match solar panels
Solar DC Water Pump
Recommend solar panels Power or battery and Voltage
Water Flow
Head Lift
Outlet
Body
1
Pump 750W-48-2-140M
800W-1000W
DC48V
2tons per hour
Head 140M
1inch
3inch
2
Pump 1000W-60-2-160M
1000W-1200W
DC60V
2tons per hour
Head 160M
1inch
3inch
3
Pump 1200W-72-2-180M
1200W-1300W
DC72V
2tons per hour
Head 180M
1inch
3inch
Description
Dc solar submersible pump is an environmentally-friendly water supply solution. Solar water pump, also known as photovoltaic water pump, is the most attractive water supply method in sunny areas of the world today, especially in remote areas without electricity. It utilizes solar energy that is readily available and inexhaustible, and the system operates automatically from sunrise to sunset, without the need for personnel to monitor it. The maintenance workload can be minimized, making it an ideal green energy system that integrates economic, reliability, and environmental benefits.
This water pump comes with an external controller and liquid level sensor function. When the water level rises above a certain point, the pump will automatically start the motor. Conversely, when the water level drops below a certain point, the pump will immediately stop working, providing excellent motor protection functionality.
