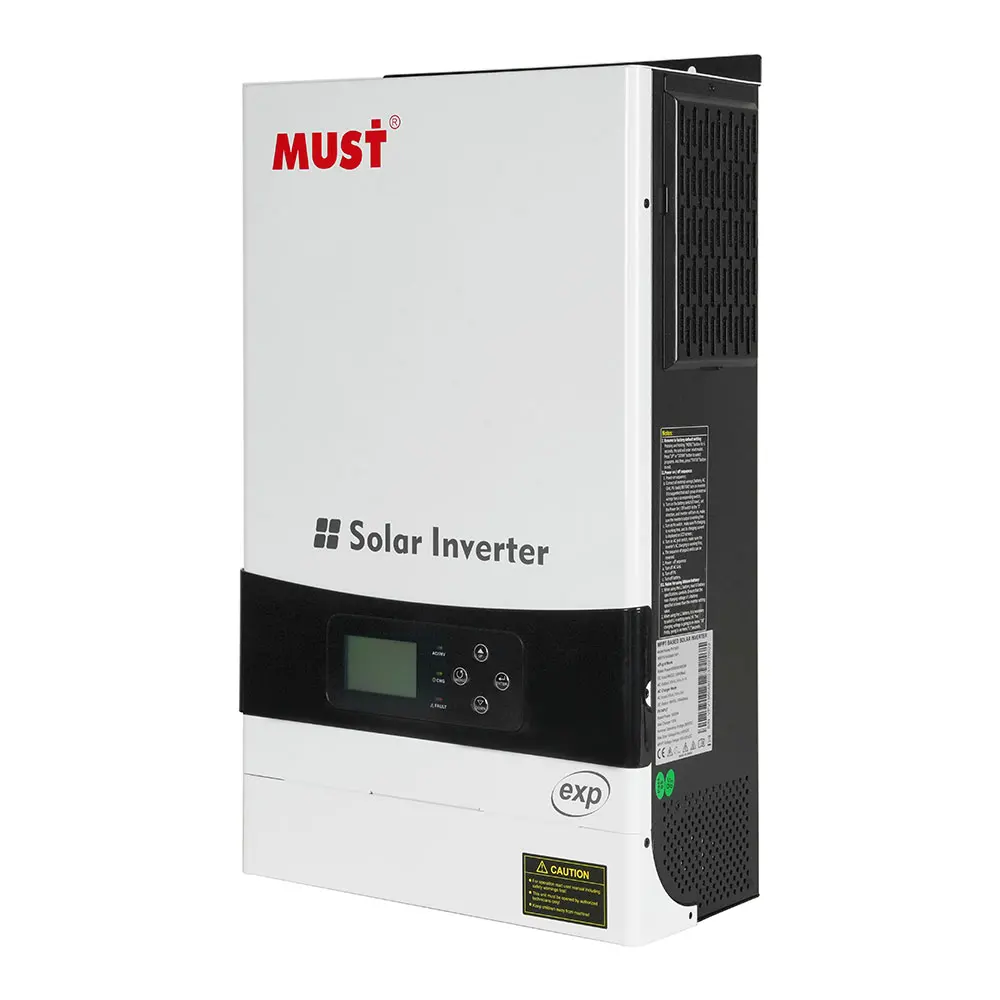

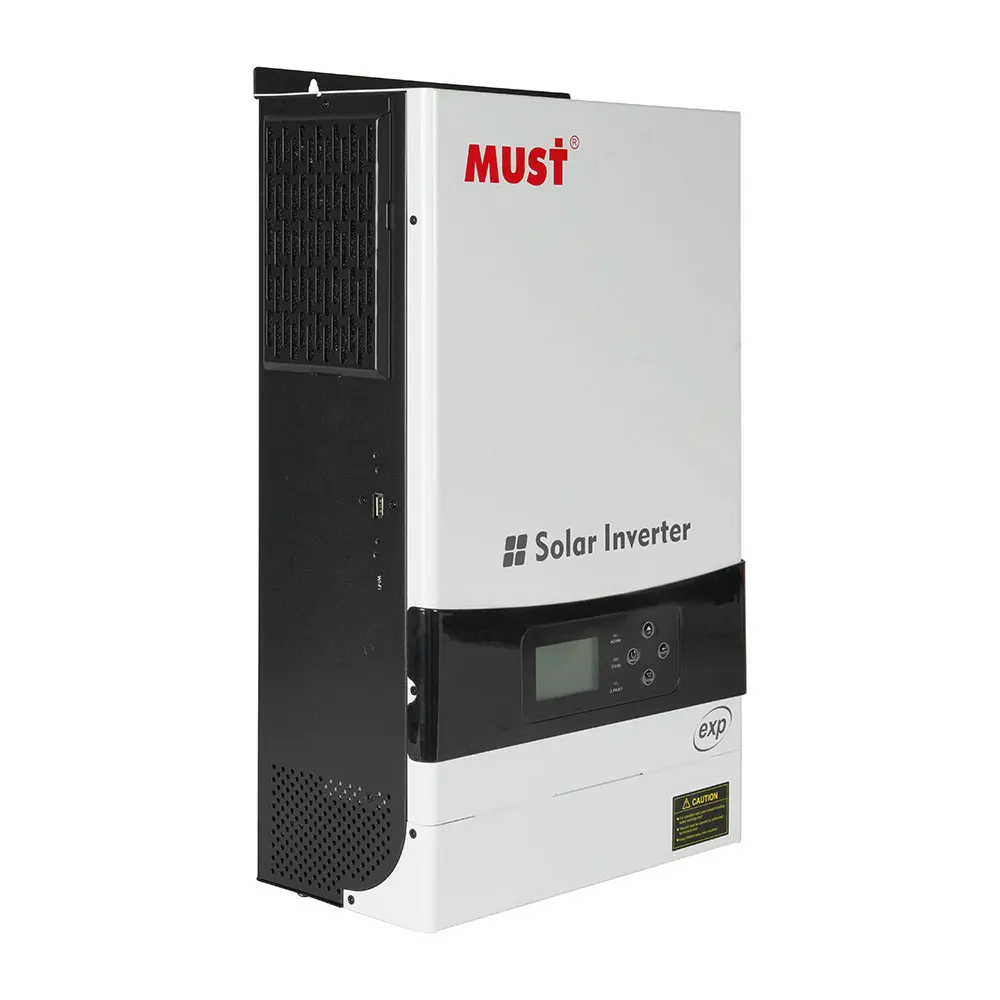

MUST PV1900 EXP Series Hybrid Solar Inverter
PV1900 EXP is a multi-function inverter/charger, combining functions of inverter, 120A MPPT solar charger and 100A AC battery charger to offer uninterruptible power support in portable size. PV1900 EXP Series can run without battery. The Maximum PV array open circuit voltage can reach 500V and MPPT voltage is 150~450Vdc, which Can help customers make full use of solar energy.
Features
*// Pure sine wave output
*// Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc)
*// Build-in MPPT 120A solar charge controller, 100A AC charge controller
*// Max PV Array Open Circuit Voltage 500V
*// Can provide the power to the load wothout battery
*// Combining solar system, AC utility, and battery power source to supply continuous power
*// Overload, short circuit and Deep discharge protection
*// Cold start function
*// Support USB, RS485 monitoring function
*// Support LiFePo4, Gel, Lead Acid etc. battery
*// Mobile Phone APP remote monitoring (optional)

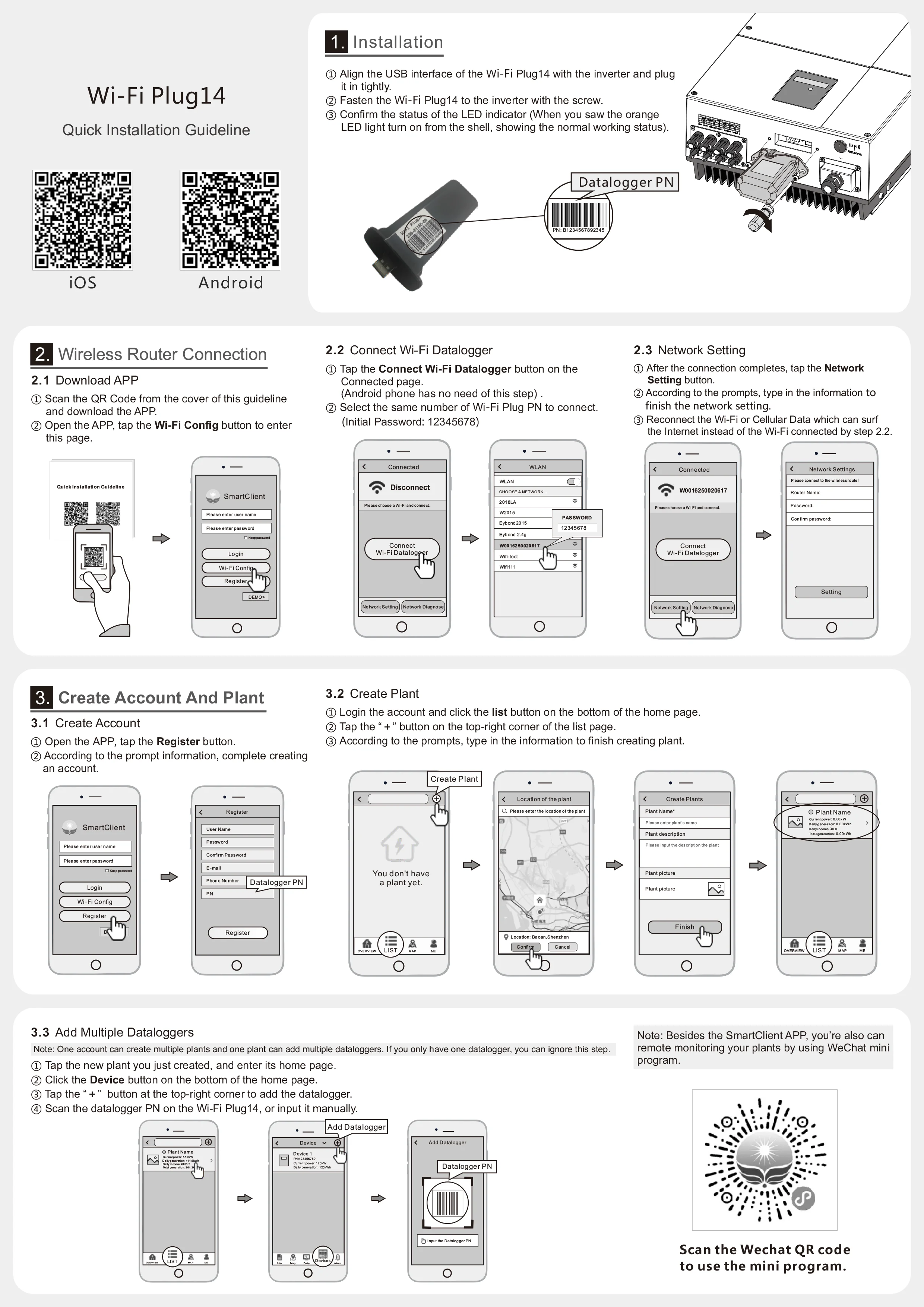

*// WIFI, Parallel kit
*// Output Source Priority Selection: SUB, SBU, SOL, UTI
Inverters equipped with “SUB” Working Mode
Recommend Products
Product parameters
MODEL
PV1900 EXP
Nominal Battery System Voltage
48VDC
INVERTER OUTPUT
Rated Power
6000W
Surge Power
12000W
Waveform
Pure sine wave
AC Voltage Regulation (Batt.Mode)
230VAC±5%(Setting)
Inverter Efficiency (Peak)
93%
Transfer Time
10ms(For Personal Computers)20ms(For Home Appliance)
AC INPUT
Voltage
230VAC±5%
Selectable Voltage Range
170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)
Frequency Range
50Hz/60Hz (Auto sensing)
BATTERY
Normal voltage
48VDC
Floating Charge Voltage
54.8VDC
Overcharge Protection
60VDC
SOLAR CHARGER&AC CHARGER
Maximum PV Array Open Circuit Voltage
500VDC
PV Array MPPT Voltage
150-450 VDC
Maximum PV Input Current
27A
Maximum PV Array Power
6000W
Maximum Solar Charge Current
120A
Maximum AC Charge Current
100A
Maximum Charge Current
120A
MECHANICAL SPECIFICATION
Machine Dimensions (W*H*D)(mm)
330*488*119
Package Dimensions (W*H*D)(mm)
396*638*241
Gross Weight(kg)
14
OTHER
Humidity
5% to 95% Relative Humidity (Non-condensing)
Operating Temperature
0°C -55°C
Storage Temperature
-15°C -60°C
SKU Explanation
6KW-Parallel
6KW inverter with build-in parallel kits
6KW-WIFI-Parallel
6KW inverter with build-in parallel kits and WIFI-PLUG
Product Description
Recommend Solar Panel Connetion
PV module spec(reference)
Maximum Power(Pmax):452W
Max.Power Voltage Vmpp(V):38.6V
Max.Power Current Impp(A):11.02A
Open Circuit Voltage Voc(V):45.80V
Short Circuit Current Isc(A):11.81A
Total solar input power
solar input
Q’tys of modules
2550W
6pcs in series
6pcs
3400W
8pcs in series
8pcs
5100W
6pcs in series
2 strings in parallel
12pcs
5950W
7pcs in series
2 strings in parallel
14pcs
PC and APP Config and Monitor

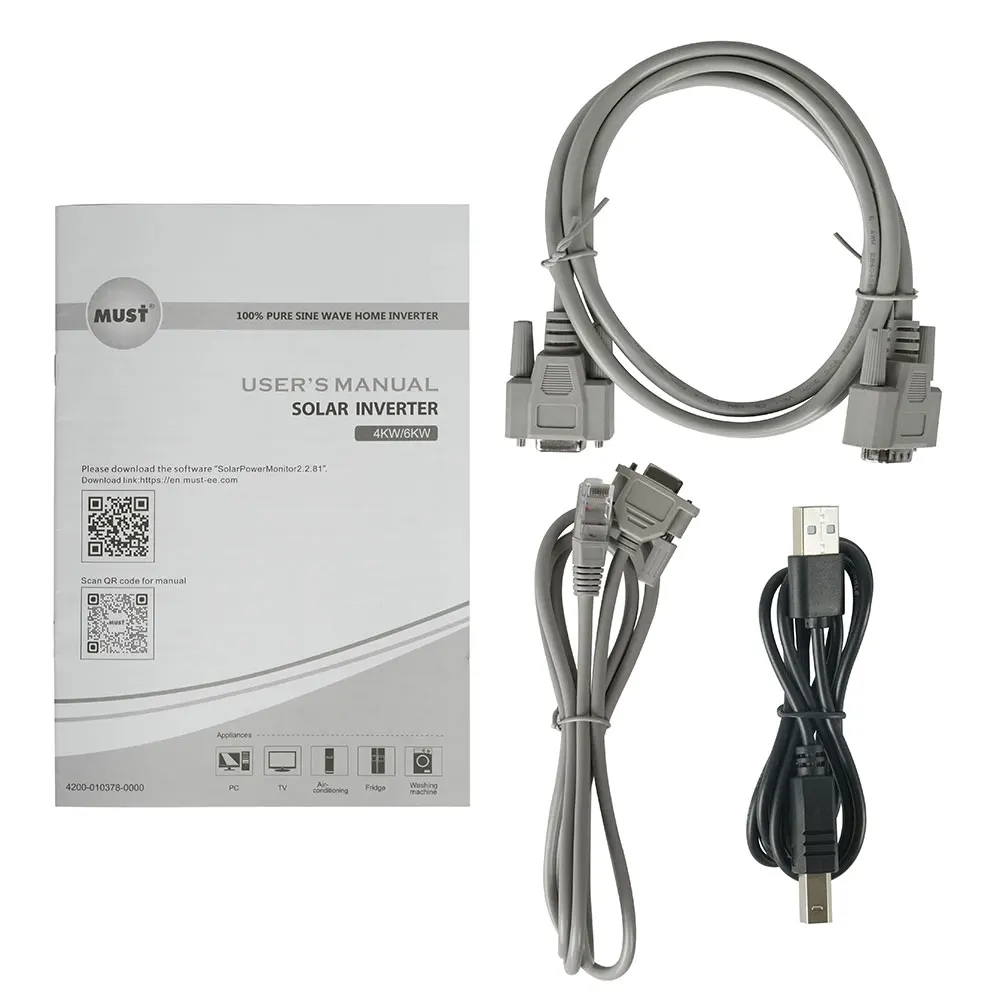

Our inverter can be connect to PC, please download the upper-computer-software and use the communication cable which come with the inverter to set up your inverter via PC or check all the data.
Down load at https://en.must-ee.com/archives/24

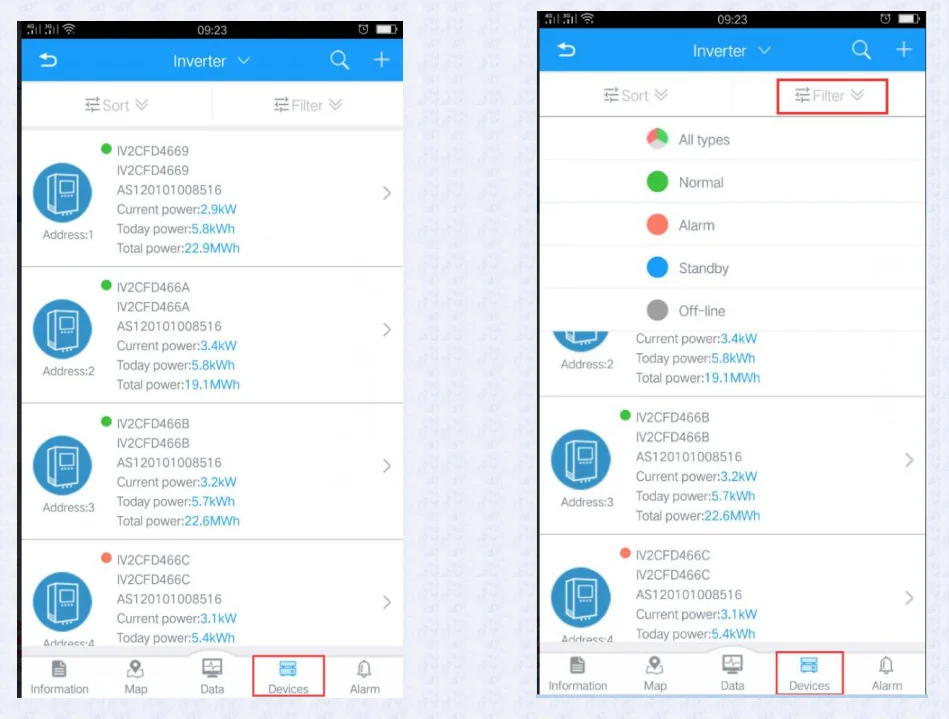

Our inverter can be monitoring via mobile APP, check your inverter ANYWHERE, ANYTIME
Ask us if you need Mobile APP instruction
FAQ
1.Shipping policy
Shipping from China: Parcel sent within two working days, Standard logistics: delivery time: 15-40 days, Fast logistics (DHL/FedEx/UPS): delivery time: 7-10 days
Shipping from Polish warehouse: parcels sent within one working day, Delivery time: 3-5 days(DHL_PL/DPD)
2.Warranty policy
The warranty period of each inverter is one year, effective from the time you receive the goods, within one year of non-human factors of damage, engineers will diagnose for you free of charge to determine the problem and provide repair solutions, free accessories within the warranty period
3.After-sales policy
Other problems can be directly online contact us, technical problems can be directly contacted with engineers, 24 hours online to provide you with servicesEngineer phone: +86 17788797642, WeChat and WhatsApp with the same number, E-mail: cs-zjs@mustpower.cn
Wrong way of operation may cause the product to burn out, such as not following the standard installation when connecting cables. Please read the manual carefully when installing.
