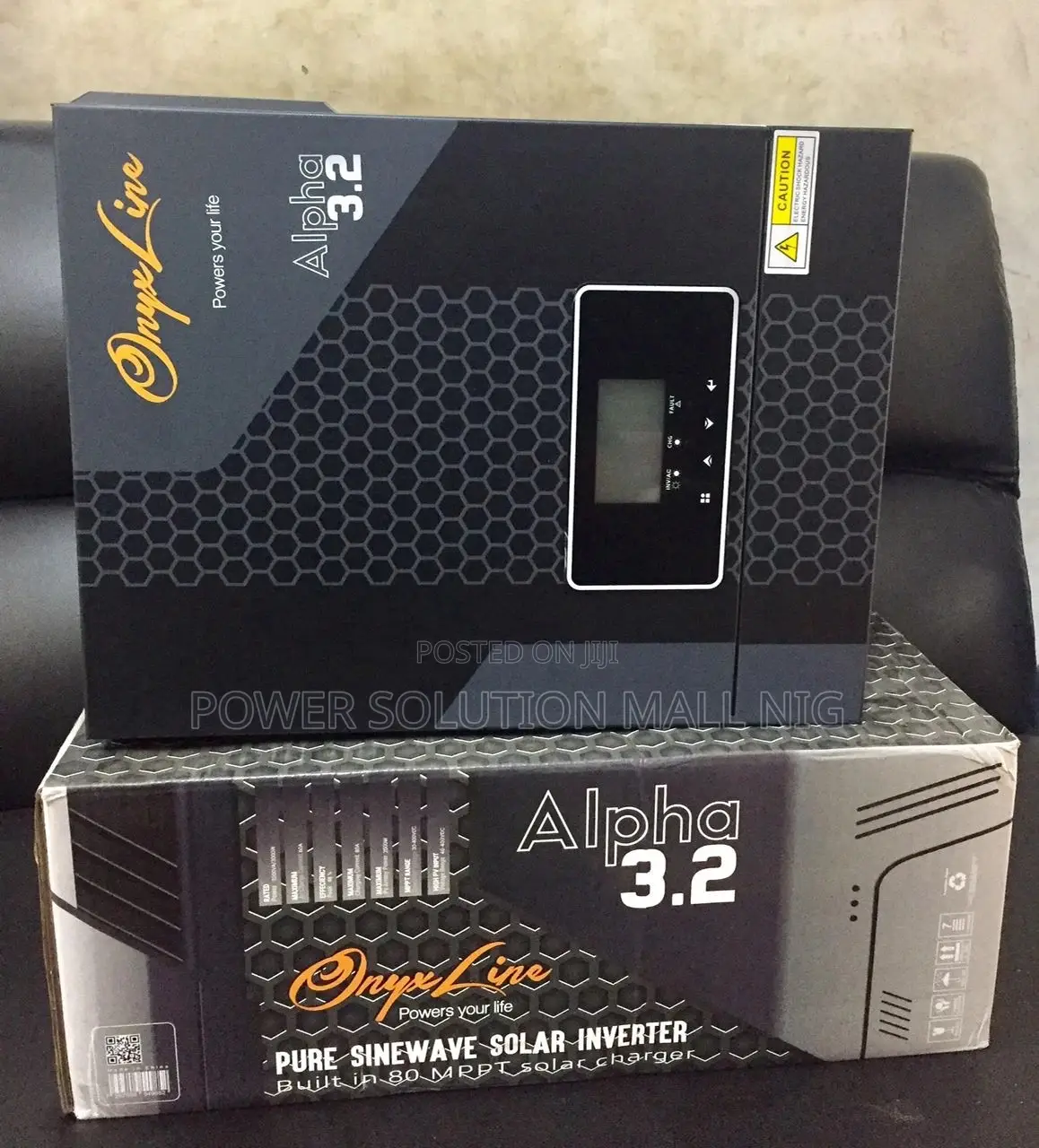

Onyxline ALPHA 3.2KVA/24v hybrid inverter with 60 Mppt
ALPHA 2KVA–2KW Off Grid
Model name – Alpha 2KVA
Model Number – Ony-I-A3.0-24
Rated Power – 2000VA/300W
AC Input Voltage – 230VAC
Selectable Voltage – Computers (170-280VAC)/ Appliances (90-280VAC)
Frequency range 50/60Hz (Auto sensing)
AC OUTPUT
AC Voltage Regulation – 230VAC +/-5%
Surge Power – 6400VA
Efficiency Peak – 98%
Transfer Time – 10ms
BATTERY & AC CHARGER
Battery Voltage – 24VDC
Floating Charge – 27VDC
Overcharge Protection – 33VDC
Maximum AC Charge Current – 60A
SOLAR CHARGER
Maximum PV Array power – 3000W
MPPT Range Operation Voltage – 30-400VDC
Max PV array open circuit – 400VDC
Maximum Charging Current – 80A
