Name: 1.2KVA/12V Inverter Pure sine Inverter - Power Solution Mall
Price: 244000.00 NGN
Availability: InStock

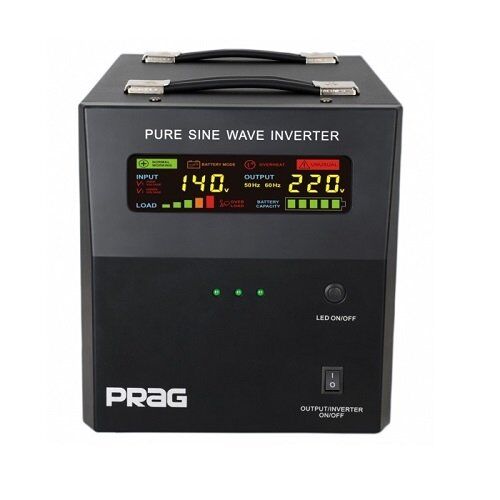

1.2KVA/12V Inverter Pure sine Inverter

Pure sine wave inverter,
UPS, AVR (Stabilizer) and charger function
Generator compatible
Low power self-consumption
Fast changeover, guarantees uninterrupted power supply
True C.R.G.O Toroidal transformer design provides high efficiency, low static loss, much more energy saving than old square transformer type design.
Intelligent 3 stage charger protects your battery
32-bit high-speed CPU control, swift response, more accurate detection
Color LED, user-friendly operation interface, displays clearly device’s working status, input & output voltage, loading status, battery status etc.

Specification

Model	1.2KVA
Rated Capacity	1200VA
Rated Power	800W
Transformer	C.R.G.O
Interface	LED graphic
Display Status	working & loading & battery
Input
Voltage	140~275 Vac
Frequency	45~65 Hz
Output
Voltage	220Vac ±3% for inverter;190V-245V for avr
Frequency	50/60 Hz ± 0.3Hz, subject to the main
Wave Form	Pure sinve wave
Wave Distortion	≤ 3%
Protection
overload / high temperature / output high voltage / output low voltage / battery low voltage / short circuit / over-charge / over-discharge / reversed polarity
Transfer Time	≤ 4ms
Battery Voltage	12V DC
Charge Voltage	13.8V±0.5V
Low Battery Voltage Limit	10.9V ±0.3V
Battery Low Voltage Protection Point	10.2V ±0.3V
Charge Current	Max. 10A/15A/20A optional
Cooling System	Yes
Environmental
Operating Temperature	0 – 40 ℃
Relative Humidity	10%~90% RH, non-condensing
Storage Temperature	﹣15 – 45 ℃

1.2KVA/12V Inverter Pure sine Inverter
