10 Pairs MC4 Connector With Better Waterproof Effect


3,850.00

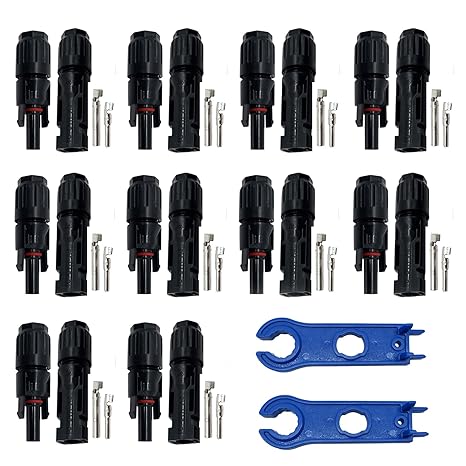

Solar mc4 connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations. Specifications: rated voltage: tuv 1000v dc / ul 600v dc rating current 20a~25a suitable cable cross sections 2.5mm2~6.0mm2 / 14awg~10awg pin dimension: 4.0mm proof voltage: dc 8kv(1min) pollution: degree 2 protection class: class ii contact material: copper, tin-plated contact resistance: 5mw connector material: ppo degree of protection ip: ip67(iec 60529) withdrawal force< 50n insertion force>50n temperature range: -40°c~+85°c flame class: ul94-v0 package: 10 pairs of mc4 male/female solar panel cable connectors 10 pairs of solar connector pins (male &female)
