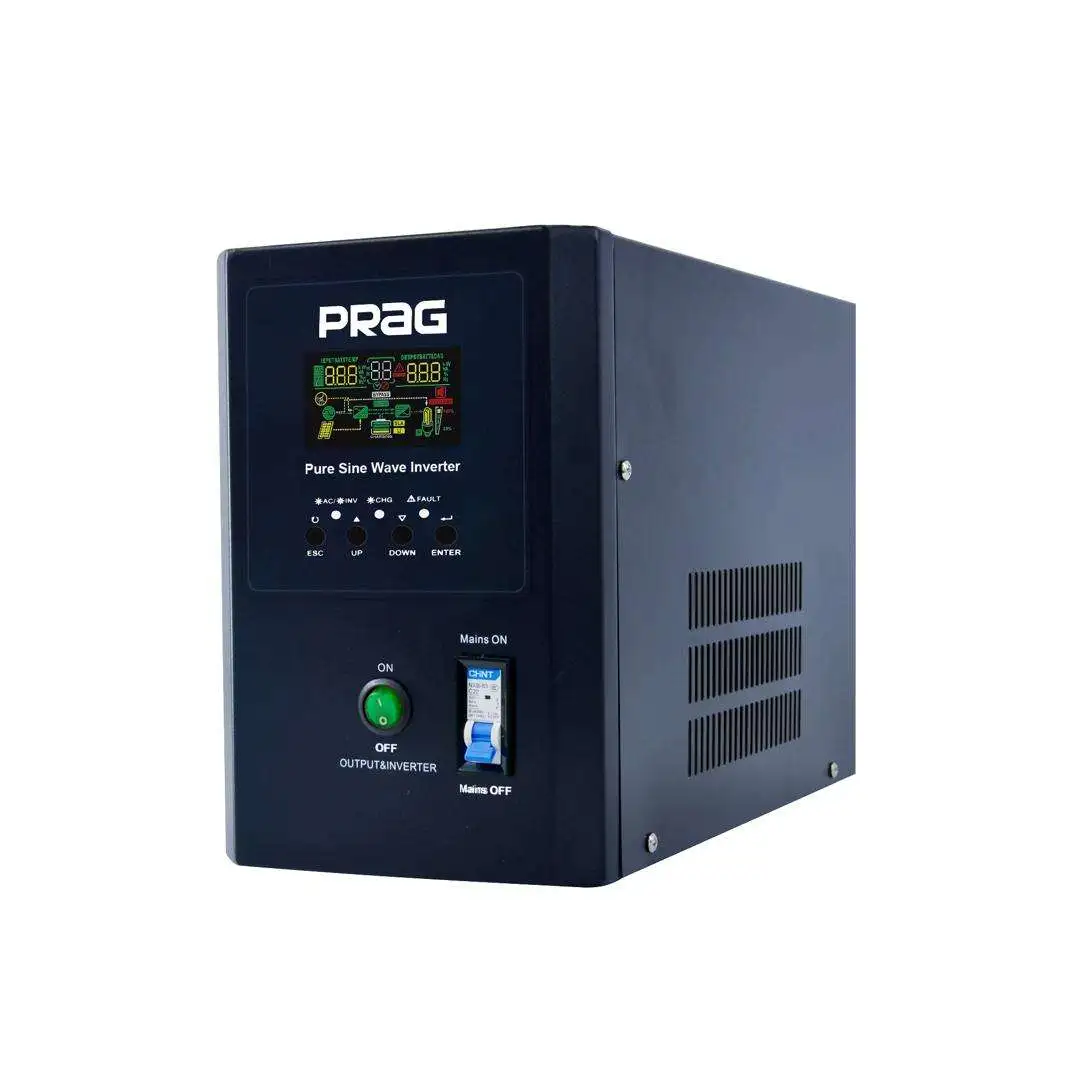

2KVA – 24V Inverter-HT series pure sine wave
,

2KVA – 24V Inverter-HT series pure sine wave

Description

PRAG 2KVA-24V HT-Series (Pure Sine Wave) Inverter / Charger is a combination of an inverter, battery charger and AC auto-transfer switch that forms one complete system with a peak conversion efficiency rating of 88%. Packed with powerful features, it is simply one of the most reliable and robust inverter/chargers in the market today.

PRAG 2KVA-24V HT-Series features power factor correction, sophisticated multi-stage charging and pure sine wave output with superior surge capability to meet demanding power needs of inductive loads without endangering the equipment. This series is equipped with a powerful charger of up to110Amps (depending on model). The overload capacity is 300% of continuous output for up to 20 seconds to reliably support sudden increase in loads without damaging the system within the time frame.

₦435,500.00 ₦634,500.00

Specifications

Inverter Output
Model PT-INV-2KVA 24V-Color LED, Wall-HT
Continuous Output Power 1500W
Surge Rating(20s) 2000W
Output Waveform Pure Sine wave/Same as input(Bypass mode)
Nominal Efficiency >88%(Peak)
Line Mode Efficiency >95%
Power Factor 0.9-1.0
Nominal Output Voltage rms 100-110-120Vac / 220-230-240Vac
Output Voltage Regulation ±10% RMS
Output Frequency 50/60Hz ± 0.3Hz
Short Circuit Protection Yes, Current Limit Function (Fault after 1sec)
Typical transfer Time 10ms(Max)
THD < 10%
DC Input
Nominal Input Voltage 12.0Vdc
( *2 for 24Vdc, *4 for 48Vdc)
Minimum Start Voltage 10.0Vdc
Low Battery Alarm 10.5Vdc / 11.0Vdc
Low Battery Trip 10.0Vdc / 10.5Vdc
High Voltage Alarm & Fault 16.0Vdc
High DC Input Recovery 15.5Vdc
Low Battery voltage recover 13.0Vdc
Idle Consumption-Search Mode < 25 W when Power Saver On
Charge
Input Voltage Range Wide: 90~135VAC / 164~243VAC
Narraw: 100~135VAC / 194~243VAC
Input Frequency Range Narrow: 47-55±0.3Hz for 50Hz, 57-65±0.3Hz for 60Hz
Wide:43±0.3Hz plus for 50Hz/60Hz
Output Voltage Depends on battery type
Charger Breaker Rating 30A
Max Charge Rate 30 ± 5A
Over Charge Protection Shutdown 15.7V for 12Vdc ( *2 for 24Vdc, *4 for 48Vdc)
Charger curve(4 stage constant current)
4 step digital controlled progressive charge		 Battery types ( *2 for 24Vdc, *4 for 48Vdc)
Battery type Fast Vdc
Gel U.S.A 14.0
A.G.M 1 14.1
A.G.M 2 14.6
Sealed Lead Acid 14.4
Gel Euro 14.4
Open Lead Acid 14.8
Calcium 15.1
De-sulphation 15.5 for 4hrs
Remote Control Yes. Optional
Bypass & Protection
Input Voltage Waveform Sine wave (Grid or Generator)
Nominal Voltage 120Vac
Low Voltage Trip 80V/90V±4%
Low Voltage re engage 90V/100V±4%
High Voltage Trip 140V±4%
High Voltage re engage 135V±4%
Max Input AC Voltage 150VAC
Nominal Input Frequency 50Hz or 60Hz (Auto detect)
Low Freq Trip Narrow: 47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz
Wide:40±0.3Hz for 50Hz/60Hz
Low Freq re engage Narrow: 48±0.3Hz for 50Hz, 58±0.3Hz for 60Hz
Wide:42±0.3Hz for 50Hz/60Hz
High Freq Trip Narrow: 55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz
Wide: 70±0.3Hz for 50Hz/60Hz
High Freq re engage Narrow: 54±0.3Hz for 50Hz, 64±0.3Hz for 60Hz
Wide: 68±0.3Hz for 50Hz/60Hz
Output Short circuit protection Circuit breaker
Bypass breaker rating 30A
Transfer switch rating 40amp for UL
Max bypass current 40amp
Mechanical Specification
Mounting Wall mount
Inverter Dimensions(L*W*H) 670*350*300mm
Inverter Weight 17KG
Shipping Dimensions(L*W*H) 585x320x310mm
Shipping Weight 11KG
Display Status LEDs / Status LEDs+LCD
Standard Warranty 1 Year
