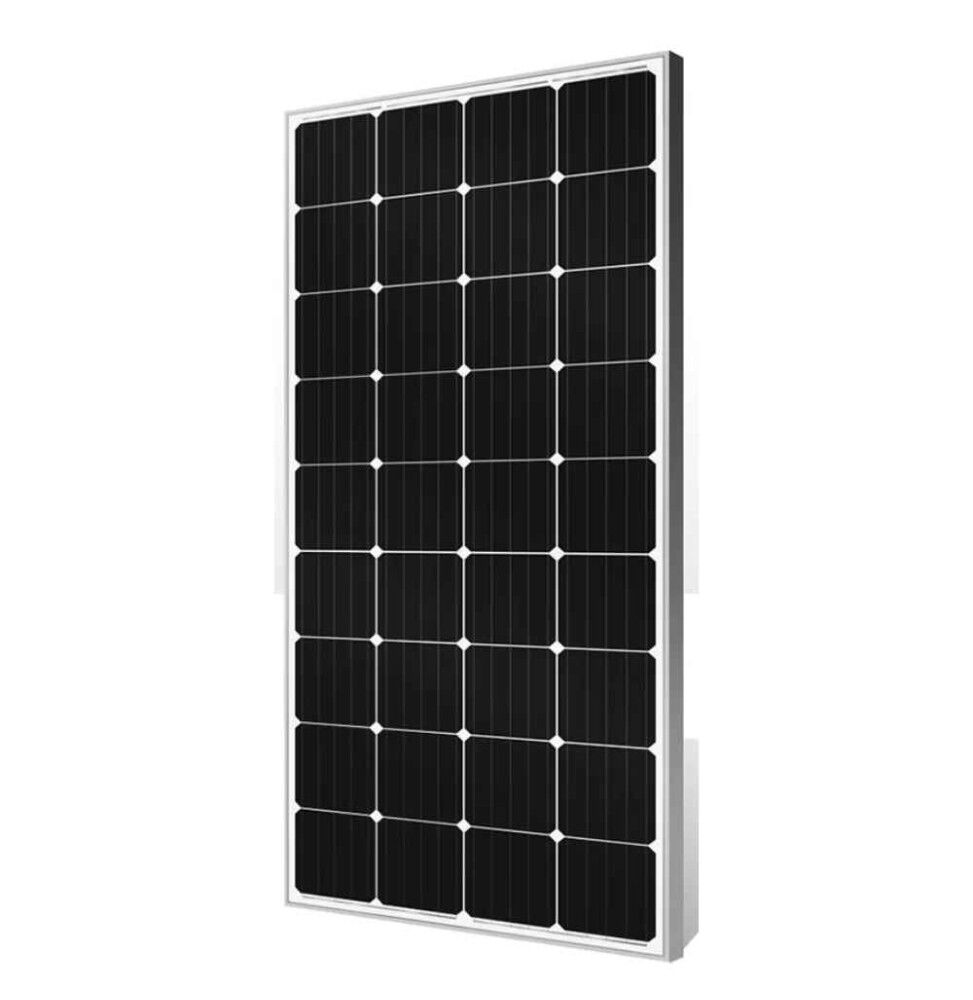

350W Monocrystalline Cell Solar Energy Panels
350W Monocrystalline Cell Solar Energy Panels
- Solar Panel 320w Monocrystalline Polycrystalline Solar Panel Module .Long life guarantee with 3000 times cycle.
- Product Advantages:To produce a monocrystalline silicon cells, absolutely pure semiconduction material is necessary. Monocrystalline rods are extracted from melted silicon and then sawed into thin plates. This production process guarantees a relatively high level of efficiency silicon and makes monocrystalline panels one of the most efficient, producing smaller solar cells, and therefore smaller panels. Monocrystalline works very well in bright cool conditions.
₦95,000.00 ₦105,000.00
Data Sheet
|
Cells type: MONO |
FL-M100 |
FL-M160 |
FL-M200 |
FL-M260 |
FL-M350 |
|
Peak Power(PMP) |
100W |
160W |
200W |
260W |
350W |
|
Tolerance |
± 3% |
||||
|
Maximum power current(IMP) |
5.55A |
8.33A |
5.56A |
8.34A |
8.34A |
|
Maximum power voltage(VMP) |
18V |
18V |
36V |
30V |
36V |
|
Short-Circuit Current(ISC) |
5.89A |
8.83A |
5.89A |
8.83A |
8.83A |
|
Open-Circuit Voltage(VOC) |
21.6V |
21.6V |
43.2V |
36V |
43.2V |
|
Maximum System Voltage |
1000VDC |
||||
|
F.F |
73% |
||||
|
Module eff. |
20% |
20% |
20% |
20% |
20% |
|
All technical data at standard test condition: AM=1.5, E=1000W/m², Tc=25℃ |
|||||
Related products
-
MC4 connector, Solar Products
24 Pairs Mc4 Solar Connectors -male/Female IP67 Connectors
This connector is approved by ce, tuv, is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations.
Why would you choose the power mc4 solar panel cable connectors?
Power cable connectors are made from high-quality PPO materials to ensure long-term durability (compare to the cheap sheet metal pin), PPO materials have advantages that sturdy, impact, corrosion-resistant with a high ignition point ensure service life and safety performance.
With excellent aging resistance and UV endurance, it can be used in harsh environments.
SKU: n/a -
MC4 connector, Solar Products
male and female MC4 connector
male and female MC4 connector With TUV Approved, Protection Class IP68 For Solar Plant Installation
Loom Solar Introduces 2 In 1 MC4 Connector for connecting solar panels.
- rated Voltage: 1500 volt, 30 amps
- suitable cable : 2.5 ~ 6.0 square mm
- TUV certified, IP 67. UV Protected
SKU: n/a -
Circuit Breaker, Solar Products
SMK 500V DC DOUBLE POLE BREAKER
FPV-63 DC MCB supplementary protectors are designed to provide overcurrent protection within appliances or electrical equipment, where a branch circuit protection is already provided or not required. Devices are designed for direct current (DC) control circuit applications.
Specifications
FPV-63 Series Circuit Breaker FPV-63
Frame Degree Rated Current (A) 63
Pole 2P
Rated Operating Voltage (V DC) DC12V -DC1200V Rated Current In (A) 1-63A
Rated Insulation Voltage Ui (V DC) 1200VDC Rated Impact Voltage Uimp (kV) 4
Ultimate Breaking Capacity Icu (kA) 6
Run Breaking Capacity LCS (%lcu) 75% Curve Type C
Trip Type Thermal-magneticSKU: n/a -
MPPT charge controller, Solar Charge Controller, Solar Products
Solar Mate 45A MPPT Solar Charge Controller
MPPT charge controller, Solar Charge Controller, Solar ProductsSolar Mate 45A MPPT Solar Charge Controller
Solar Mate is a solar charge controller with built-in Maximum Power Point Tracking (MPPT) technology, which enables them to increase the output from a solar photovoltaic (PV) array by as much as 30% compared with non-MPPT designs.
Solar Mate can optimize the PV’s output eliminate the fluctuation due to shading or temperature variables. It is a multi-voltage MPPT with a built-in sophisticated battery charging algorithm for both lead-acid batteries or lithium-ion batteries, which could support a wide variety of system designs. Meantime, the data management with 120days of history record can tell the user the actual performance of its system.
Thanks to its self-cooling design, it is suitable for most rugged environments with dust or bugs. SP range products can operate at their full rating in ambient temperatures as high as 45℃.
- For off-grid photovoltaic system up to max 2kW
- Peak efficiency 98%
- Excellent performance at sunrise and low solar insulation levels
- Low self-consumption
- Continuous operation at full power up to 45C without de-rating
- Self-cooling design for high reliability
- Built-in TBB premium II battery charging algorithm for lead-acid battery
- Data logging 120days
- Extensive networking and communication capabilities
- Auxiliary contact
- RS485: communication among TBB products or with others
SKU: n/a
