Product advantagePure Sine Wave, Strong loading ability for all kinds of equipment
Optional MPPT/PWM solar charge controller 60A
MPPT Efficiency max 98%
DC Start & Automatic Self-Diagnostic FunctionHigh Efficiency Design & ”Power Saving Mode” to Conserve Energy
Auto restart when Ac in recovering
Smart battery charger design for optimized battery performance
Selectable charging current based on applications
AC input/DC input/Solar input optional priority
Auto Restart Voltage
With energy-saving mode function, it is more convenient to use
Output short circuit protection function
Multiple parameters can be adjusted according to user needsProduct ParameterCapacity(VA)VC7000VAVC8000VAVC10000VARated Power5600W6400W8000WVoltage(DC)48VNominal Voltage220VACVoltage Range154-265VAC ;185-264VAC ( selectable)Frequency50-60HZ Auto sensingPower Factor0.8Voltage220VACFrequency50/60HZWaveformPure Sine WaveTransfer Time (AC to DC)<8msTransfer Time (DC to AC)<8msOutput Voltage Regulation土10%Bypass ModeYesSaver ModeYesEfficiency>98%Input ProtectionCircuit BreakerOutput ProtectionCircuit BreakerBattery TypeVRLA / GEL /GEL DEEP CYCLECharging Current40A45A55ALow Level disconnect (Selectable)40V -42VPWM controller Voltage range60VDC-150VDCPWM Maximum PV display open circuit voltage75VMaximum PV array power3400WMPPT control voltage range60V-150VMPPT Maximum PV display open circuit voltage150VDCMaximum solar charge current60ALCD indicator statusAC input voltage/input frequency, PV voltage, PV current , Output Voltage/Frequency, Battery voltage, Load current etc.LED indicator statusAC Line In:Green/Inverter:Red/Charging :Yellow/Alarm :RedLOW battery alarmAudible alarm-5 seconds beepingOverload alarmAudible alarm- continuous beepingFaultAudible alarm- continuous beepingTemperature0-60℃Humidity—10℃~90℃ Non condensingAccoustic Noise(db)>55dBSize L*W*H(mm)720mm*335mmm*210mmWeight (kg)273033

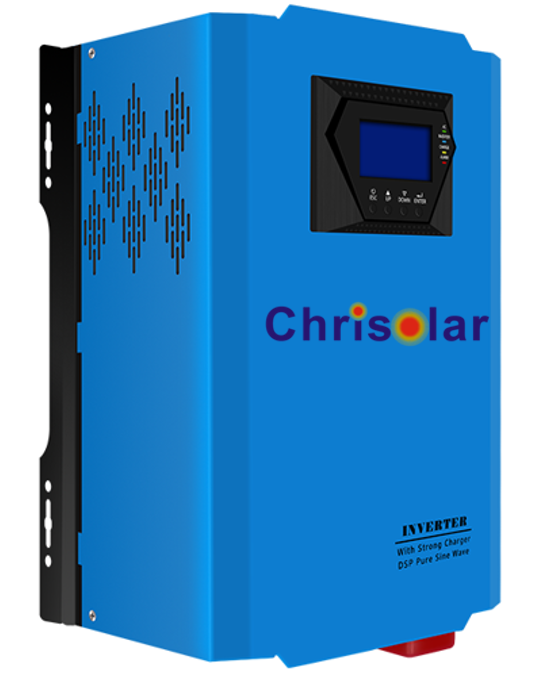

Hybrid inverter SCI Series is equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank. The transformer-based design provides reliable power conversion in a compact size. Besides, it’s worry-free to start up motor-type loads such as refrigerators, motors, pumps, compressors, and laser printers as well as electronic loads like TVs, Computers, power tools,s and battery chargers.
