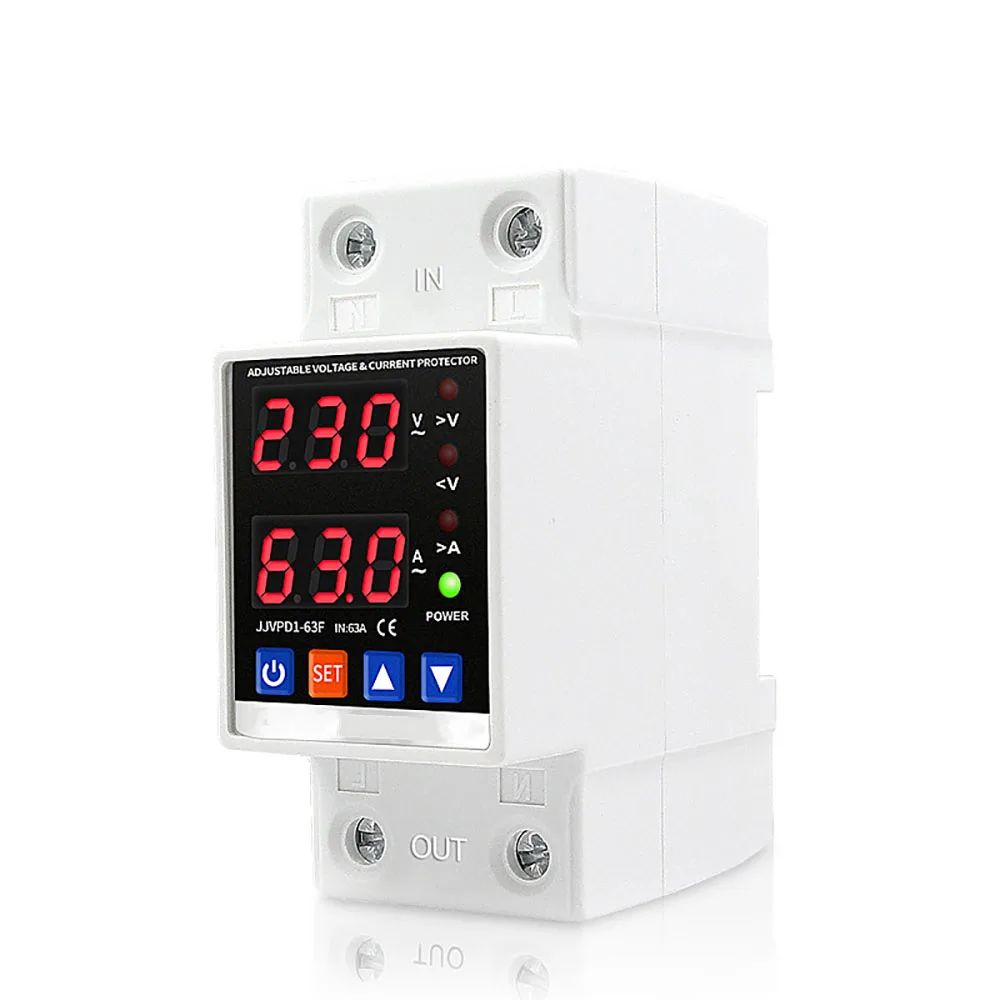

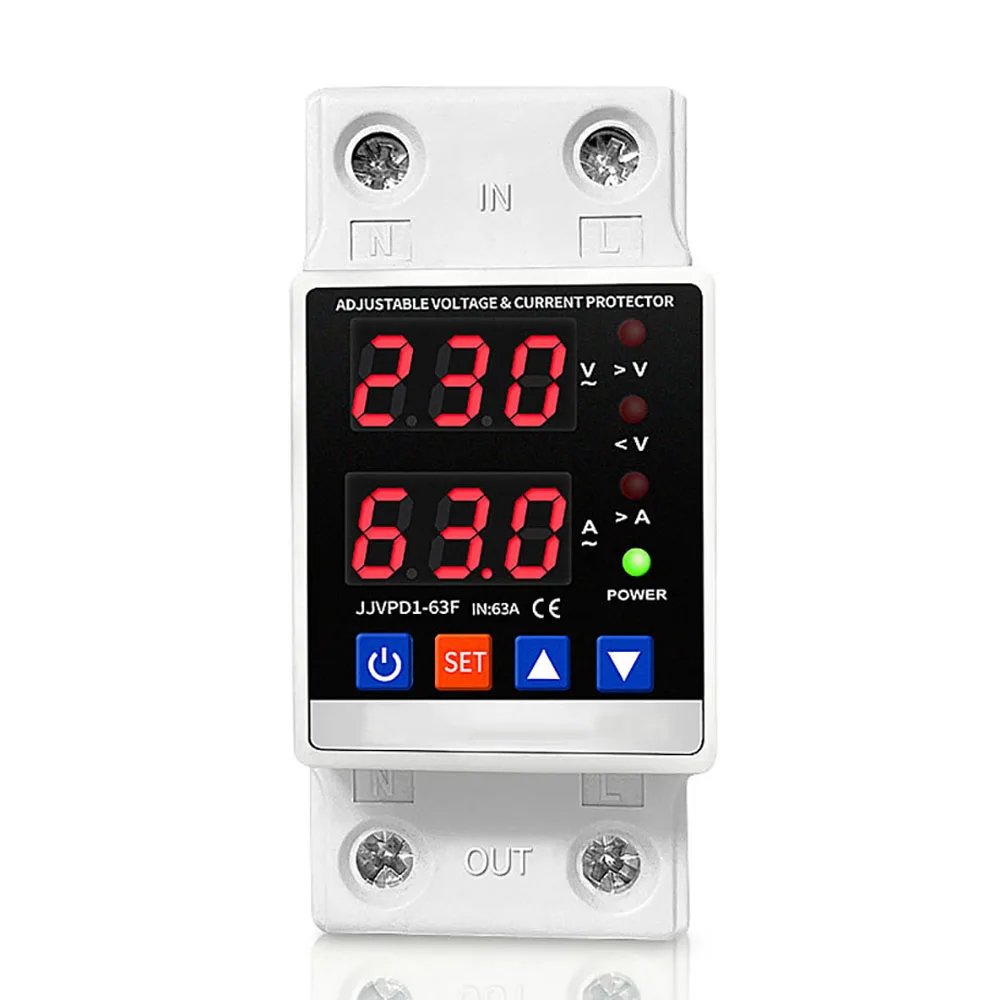

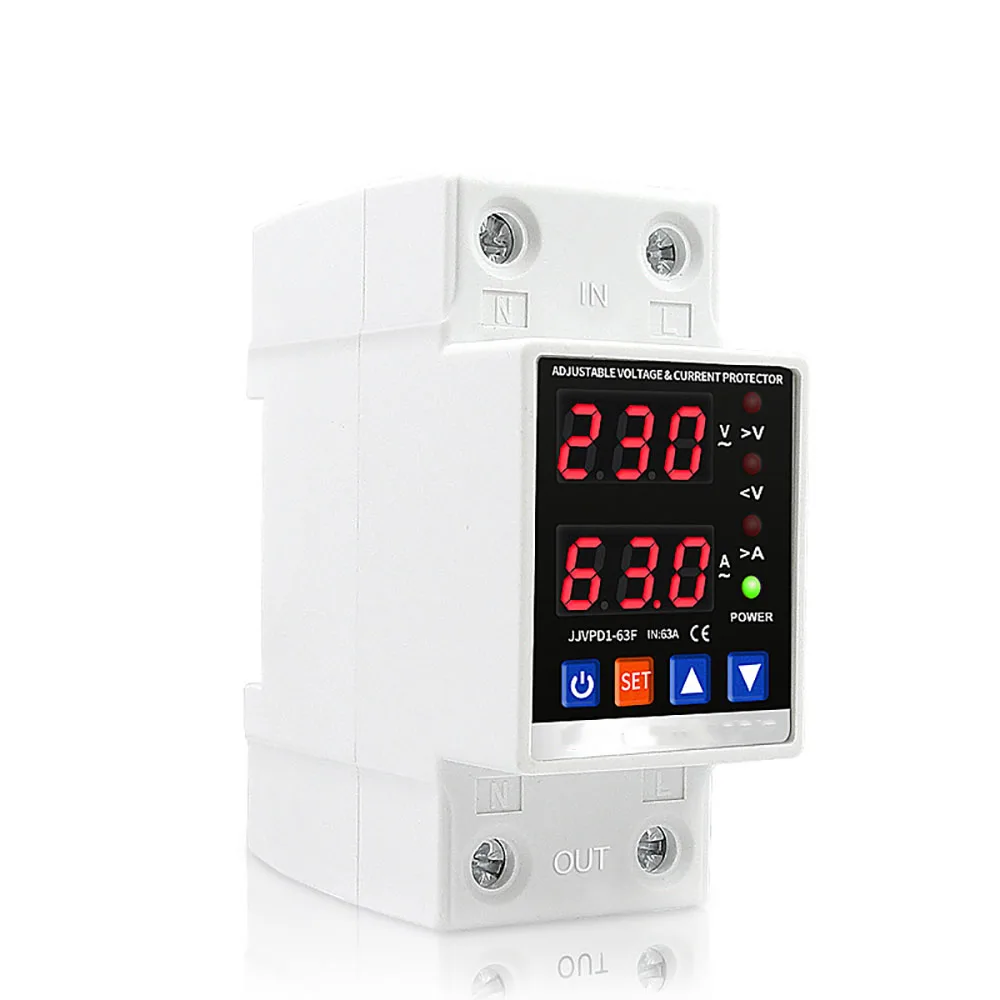

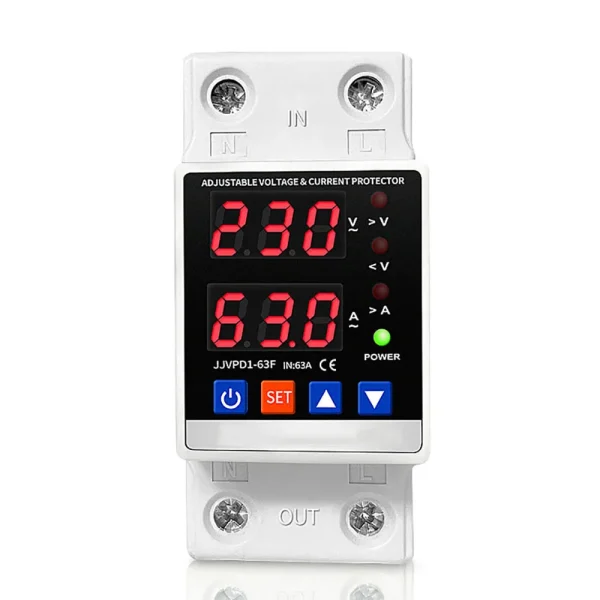

Dual Display 40A 63A 80A 230V Din Rail Adjustable digital Over Under Voltage Relay Surge Protector Limit Over Current Protection
Features:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4. Automatic recovery
5.Voltage display(voltage measurement)
6. Current display (current measurement)
7. Voltage calibration: Voltage +-10% adjustable. A13
8. Current calibration: Current +- 9/5% adjustable A15
9. Restore factory settings: press the down button for more than 12s
10.Fault inquiry: Press the UP button from more than 12S
Product Parameters:
1. Model number:JJVPD1-63F
2. Power supply:230VAC 50/60Hz
3.Max.Loading power:
1~40A
Adjustable(default:20A)
1~63A
Adjustable(default:40A)
1~80A
Adjustable(default:60A)
4.Over-voltage protection value range:230V~300~OFF(default:270V)
Over-voltage recovery voltage range:225V-295V(default:250V)

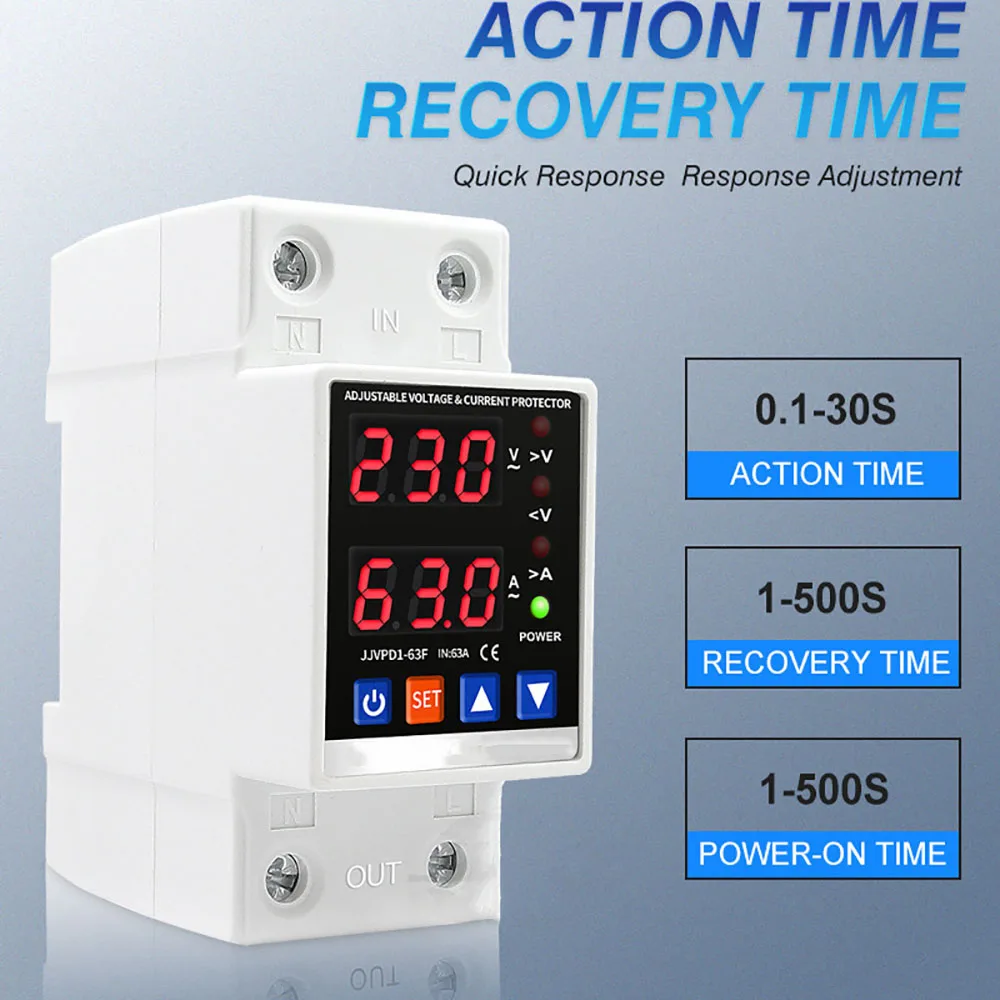

Over-voltage protection action time:0.1s~30s(default value:1s)
Over-voltage recovery delay time:15~500s(default:30s)
5.Under-voltage protection value range:140V-210V -OFF(default:170V)
Under-voltage recovery voltage range:145V-215V (default:190V)
Under-voltage protection action time:0.15~30s(default:1s)
Under-voltage recovery delay time:15~500s(default:30s)
6.Over-current adjustment range:1-40A (default:20A) 1-63A (default:40A)
1-80A(default:60A)
Over-current action range:0.1~30 second (default:1s)
Over-current recovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
8. Power consumption: <2W
9.Electric machinery life : 100,000 times

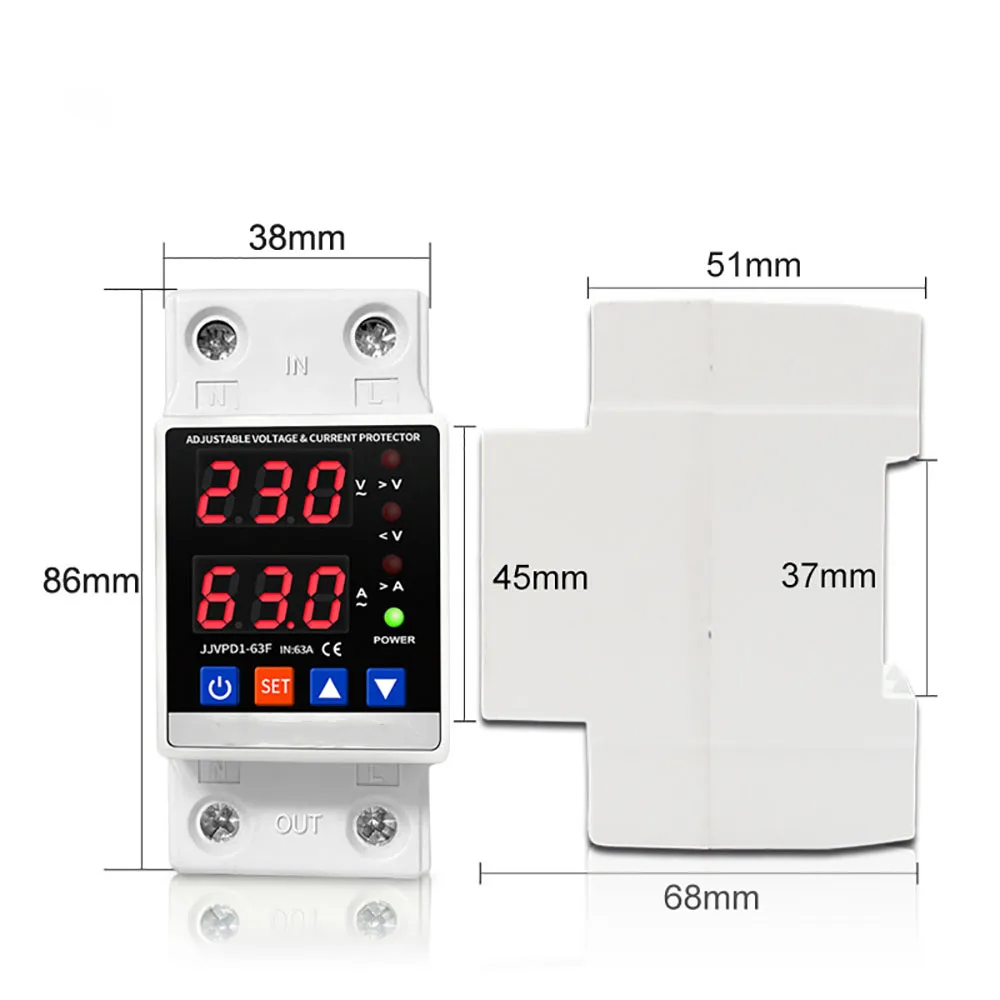

10.Installation:35mm DIN rail
Noted: When you first connect the product, you have to wait about 10 second ( Power-on delay time:15~500s(default:10s)), after the red light turn off, then the product will work.
Package Included:
1 * Voltage Protector
1 * Instructions
