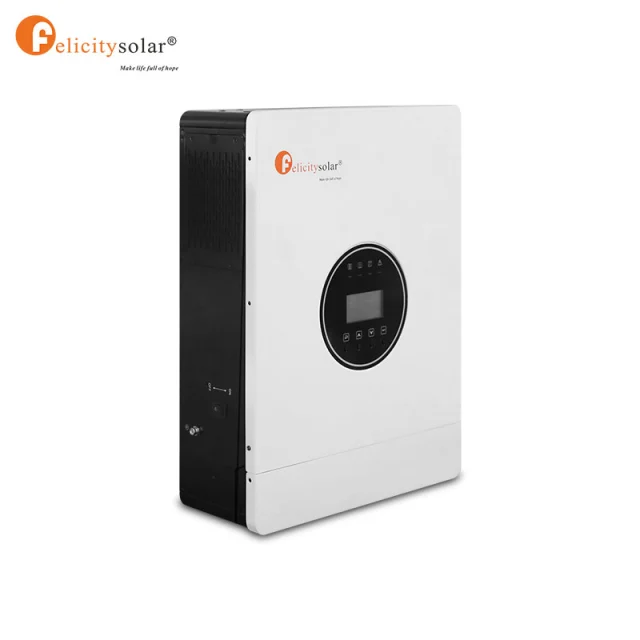

Felicity Solar 3.5 KVA 48V INVERTER


1. Built-in AC charger and MPPT solar charge controller( optional ).

2. Build-in battery reverse polarity protection.

3. Adjustable charge current and output frequency.

4. RS-232 communication interface.

5. The generator has the function of automatic control on and off.

6. Full function LCD and LED display.

7. AC input and output protection switch.

8. Build-in battery temperature compensation interface.

9. Automatic AC and PV charger after shutdown.

10.Low frequency high reliable pure sine wave circuit architecture.

11. Optional 8 types of batteries, three-stage intelligent charger.

160,000.00

Solar inverter, or converter, or PV inverter converts the variable DC output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be off-grid electrical network. It is a critical balance of system–component in a solar power system, allowing the use of ordinary AC-powered equipment.

1kw solar grid tie inverter



Solar inverter, or converter, or PV inverter converts the variable DC output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be off-grid electrical network. It is a critical balance of system–component in a solar power system, allowing the use of ordinary AC-powered equipment.





1kw solar grid tie inverter

  Line Mode Specification
   ModelFL-IVP1512-1500VAFL-IVP3524-3500VAFL-IVP5048-5000VAFL-IVP7548-7500VAFL-IVP10048-10000VA
   Input Voltage WaveformPure Sine Wave (Utility or Generator)
   Nominal Input Voltage110V-120V / 220V- 240V
   Max AC Input Voltage140V / 270V
   Nominal Input Frequency50Hz / 60Hz (Auto detection)
   Output Voltage WaveformAs same as input waveform





Inverter Mode Specification
ModelFL-IVP1512-1500VAFL-IVP3524-3500VAFL-IVP5048-5000VAFL-IVP7548-7500VAFL-IVP10048-10000VA
Output Voltage WaveformPure Sine Wave
Rated Output Power1500VA3500VA5000VA7500VA10000VA
Nominal Output Voltage110V-120V / 220V- 240V ± 10%
Nominal Output Frequency50Hz / 60Hz ±0.3Hz
Nominal Efficience80%
Capable of starting electric motor1HP2HP3HP
Nominal DC Input Voltage12V24V48V



Charge Mode Specification
ModelFL-IVP1512-1500VAFL-IVP3524-3500VAFL-IVP5048-5000VAFL-IVP7548-7500VAFL-IVP10048-10000VA
MAX Charge Current35A30A40A50A
Charge Current RegulationCharge current adjustable: 25%, 50%, 75%, 100%(Optional)
Battery Type SelectionSelect the right type of battery to charge (e.g: GEL, AGM, Open lead acid, Sealed lead acid, etc )
Charge AlgorithmThree stage: Boost CC (constant current stage)—Boost CV (constant voltage stage)—Float(contact voltage stage)



Product Feature

1kw solar grid tie inverter

Features:

1. Build in AC charger and MPPT solar charge controller( optional ).

2. Build in battery rever se polarity protection.

3. Adjustable charge current and output frequency.

4. RS-232 communication interface.

5. Generator has function of automatic control on and off.

6. Full function LCD and LED display.

7. AC input and output protection switch.

8. Build in battery temperature compensation interface.

9. Automatic AC and PV charger after shutdown.

10.Low frequency high reliable pure sine wave circuit architecture.

11. Optional 8 types of batteries, three-stage inteligent charger.
