Product Description
Model
J12100
J12200
J24100
Nominal voltage [V]
12.8
12.8
25.6
Nominal capacity [Ah]
100
200
100
Total energy [Kwh]
1.28
2.56
2.56

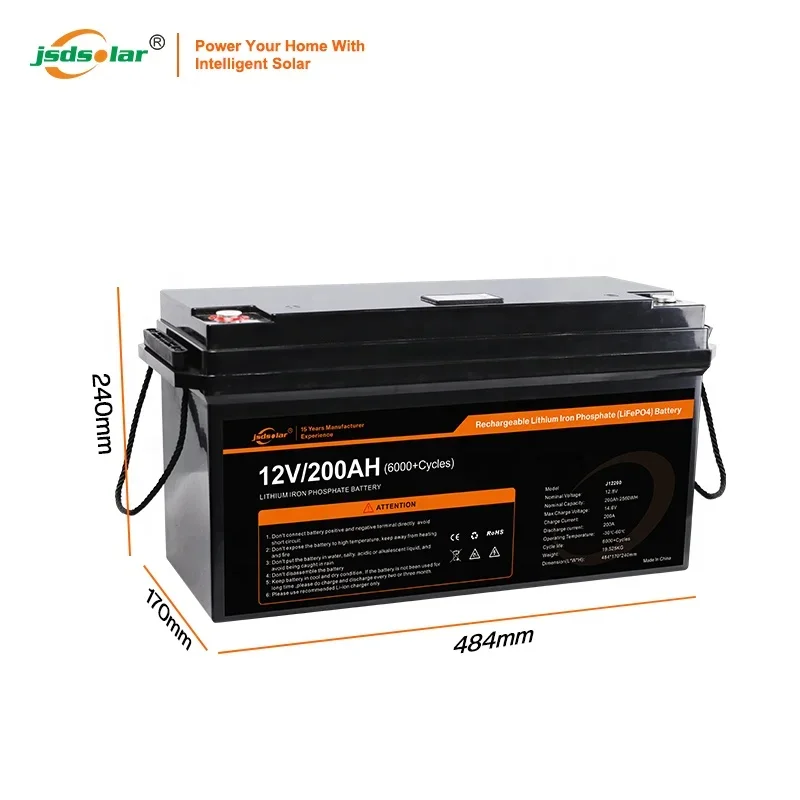

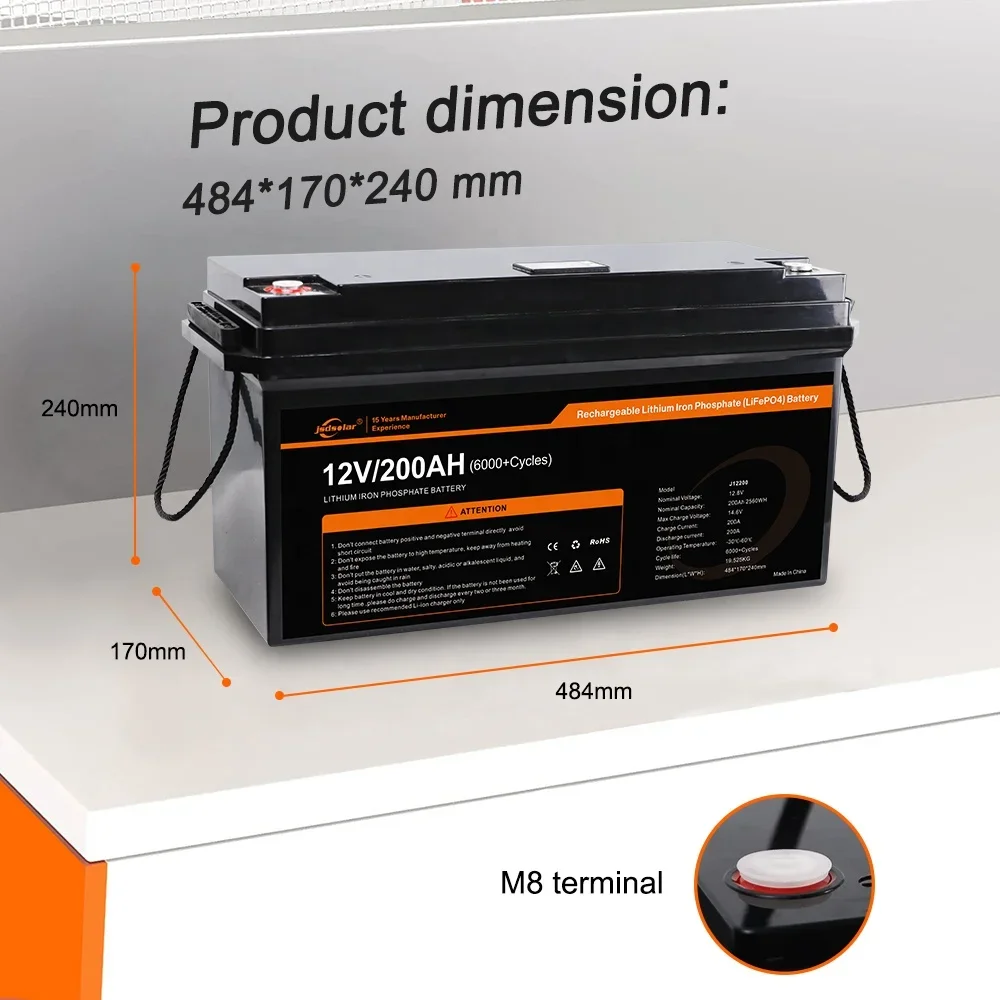

Product dimension [W*D*H]
260*168*215 mm
484*170*240 mm
484*170*240 m
Product weight
10 Kg
18.5 Kg
18.5 Kg
Max. charging current [A]
100
200
100
Charge Mode
@0.2C(A) to 14.6V ,then @14.6V till charge current
@0.2C(A) to 14.6V ,then @14.6V till charge current
@0.2C(A) to 29.2V ,then @29.2V till charge current
Charging voltage [V]
14.6
14.6
29.2
Max. discharging current [A]
100
200
100
End of discharge voltage [V]
11.2
11.2
22.4
Protection class
IP65
IP65
IP65
Operating humidity
0-95 %RH (No condensing)
0-95 %RH (No condensing)
0-95 %RH (No condensing)
Operating temperature range
Charge: 0 ~ +50 °C Discharge: -20 ~ +55 °C
Charge: 0 ~ +50 °C Discharge: -20 ~ +55 °C
Charge: 0 ~ +50 °C Discharge: -20 ~ +55 °C
Storage temperature range
-20 ~ +60 °C / -4 ~+140°F
-20 ~ +60 °C / -4 ~+140°F
-20 ~ +60 °C / -4 ~+140°F
Communication interface
/
/
/
BMS Functions
Cell Voltage/Current Balance, Temperature, MOSFETS
Cell Voltage/Current Balance, Temperature, MOSFETS
Cell Voltage/Current Balance, Temperature, MOSFETS
Protection
Over voltage , Low voltage , Over current,Over Temperature, Low Temperature Short circuit
Over voltage , Low voltage , Over current,Over Temperature, Low Temperature Short circuit
Over voltage , Low voltage , Over current, Over Temperature, Low Temperature Short circuit
Certification
UN38.3, CE,MSDS
UN38.3, CE,MSDS
UN38.3, CE, MSDS

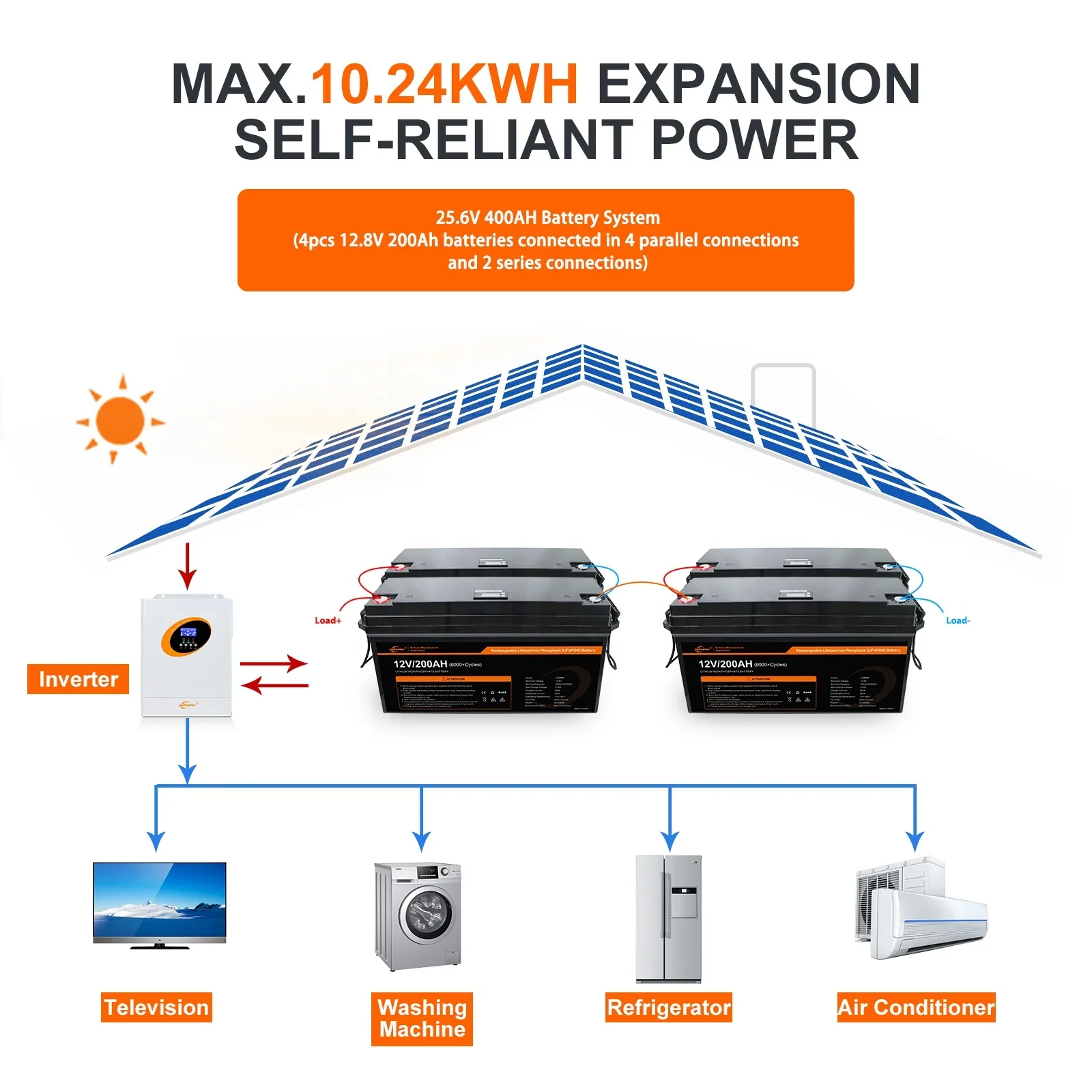

Support Concatenation
Max 4 PCS
Max 4 PCS
Max 2 PCS
Recommended by seller
Company Profile
Headquarter & Factory Location
No68, Baigongao Industrial area, Fucheng Street, Longhua District, Shenzhen, China
Industry Experience
12-Year Manufacturer and Trading, Alibaba Supplier
Product Range
Solar Inverter, Solar Battery (lithium ion battery), Solar System, Solar Street Light, Solar Garden Light, Solar Wall Light, Solar Controller etc.
Main Market
Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.)
Department
2-teams Marketing Dept, 1-team R&D, 1 Manufacturing Center, 6-team producing Dept, After-sale Service Dept.
Certificate
ISO9001:2008, CE, RoHs, SGS, TUV, EMC, FCC etc.
Patent
Software Patent, Design Patent, Project Patent.
Exhibition
Certificate
Our Service
Samples, OEM and ODM, Warranty and After-Sale Service:
* Welcome Solar Power System Sample Test;
* OEM & ODM is welcomed;
* Warranty: 3 Year;
* After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
How To Ask for Support if products broken in warranty?
1. send email us about PInumber, Product number, most importantly, is the description of broken products, to the best, show us more detailed pictures or video;
2. we will submit your case to our after sales department;
3.Usually within 24 hours, we will email you the best solutions.
