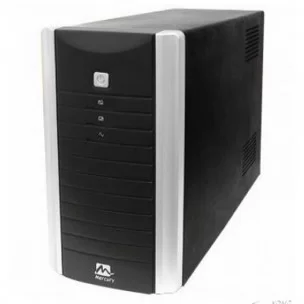

Mercury 2.0kVA Backup UPS
,

Mercury 2.0kVA Backup UPS

Key Features
  • 2000va/1200w
  • Built-In Avr
  • Wide Range Voltage Range
  • Over Charge Protection
  • Overload Protection

₦310,000.00 ₦367,500.00

Rating input voltage 2000 VA / 1200 W
Rating input frequency 60/50Hz (auto sensing)
Input phase Single phase
Input socket With Fuse
Cold Start (0 to 100% load) Press the ON/OFF Switch
Input Range (220V) 140-300
Rating output(VA) 2000
Rating output (W) 1200
Power factor 0.6
Rating output voltage (V) 220
Waveform Battery mode (simulated sine wave),
AC mode(sine wave)
AC Voltage Regulation ±10% (Battery mode)
Rear output socket 4 x Universal – Battery backup
Waveform Simulated Sine Wave (Battery mode)
Line Mode Synchronize with the utility
Rating frequency 60Hz or 50 Hz ± 1 Hz
Battery Mode Yellow flashing
Short circuit protection Line Mode Fuse & Firmware protection
Short circuit protection Battery Mode Firmware Protection
Overload protection Line Mode 110%±5%; Go to fault mode Line Mode after 5 minutes, 120%±5%; Go to fault mode immediately.
Overload protection Battery Mode 110%±5%; Shutdown after 5 seconds, 120%±5%, Shutdown immediately
Indicators AC mode Green Lighting
Indicators Battery Mode Yellow Flashing
Indicators Fault Red Lighting
Alarm Battery Mode Sounding every 10 Seconds
Alarm Low Battery Sounding every Second
Alarm Overload Sounding every 0.5 second
Alarm Fault Continuously sounding
Full Protection Overload, discharge, and
Overcharge protection
Transfer Time Typical 2-6ms, 10ms max.
Transfer Time Typical 2-6ms, 10ms max.
Communication Interface Optional RS232/RJ11
Battery and runtime Rating 2 X 12V/9AH
Recharge time – Typical 6-8 hours recover to 90% capacity
Charge current About 1A at normal mode.
Dimension, W X H X D (cm) 22.5 X 12.5 X 39
Net Weight (kgs) 12.7KGS
Humidity 0-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 45dB
Compatible with OS Supports Windows®
2000/2003/XP/Vista/2008/7
Communication interface Elite 2000pro (N/A),
Elite 2000ipro (USB/RJ11)
