SRNE 5000W 48V 120V PV Max Input 500VDC Solar Hybrid Inverter Pure Sine Wave Off-Grid/Grid-Tie Inverter Mppt 100A Charge Current HYP4850S100-H

Note :

The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.

Introduction：

HYP series is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage & means

charging energy storage and AC sine wave output. Thanks to DSP control and advanced control

algorithm, it has high response speed, high reliability and high industrial standard. Four charging modes

are optional, i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; and two

output modes are available, i.e. Inverter and Mains, to meet different application requirements.

The solar charging module applies the latest optimized MPPT technology to quickly track the maximum

power point of the PV array in any environment and obtain the maximum energy of the solar panel in

real time.

Through a state of the art control algorithm, the AC-DC charging module realizes fully digital voltage

and current double closed loop control, with high control precision in a small volume. Wide AC voltage

input range and complete input/output protections are designed for stable and reliable battery charging

and protection.

Based on full-digital intelligent design, the DC-AC inverter module employs advanced SPWM technology

and outputs pure sine wave to convert DC into AC. It is ideal for AC loads such as household appliances,

power tools, industrial equipment, and electronic audio and video equipment. The product comes with

a segment LCD design which allows real-time display of the operating data and status of the system.

Comprehensive electronic protections keep the entire system safer and more stable.



Functional characteristics：

1. Anti-backflow grid connection function, support for inverter and mains power hybrid output,support for use without battery, can be set up for on-grid power generation.

2. Two output modes: mains bypass and inverter output; uninterrupted power supply.

3. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.

4. Advanced MPPT technology with an efficiency of 99.9%.

5. Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status.

6. With time slot control, you can set the priority of using the mains and battery according to the time slot in conjunction with the local peak and valley tariffs.

7. Power saving mode available to reduce no-load loss.

8. Intelligent variable speed fan efficiently dissipate heat and extend system life.

9. Lithium battery activation by PV solar or mains, allowing access of lead-acid battery and lithium battery.

10. 360 ° all-around protection with a number of protection functions.

11. Complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.

Design characteristics：

·Adopting full-digital double closed loop control, combined with advanced SPWM.technology and pure sine wave output.

·Advanced MPPT technology with efficiency of 99.9％.

·LCD screen and three LED indicator lights can clearly indicate the status and data.

·Intelligent and variable-speed fan, efficiently dissipate heat and extend system life.

·Multiple safety protection functions: short circuit protection, overload protection,reverse polarity protection and so on.

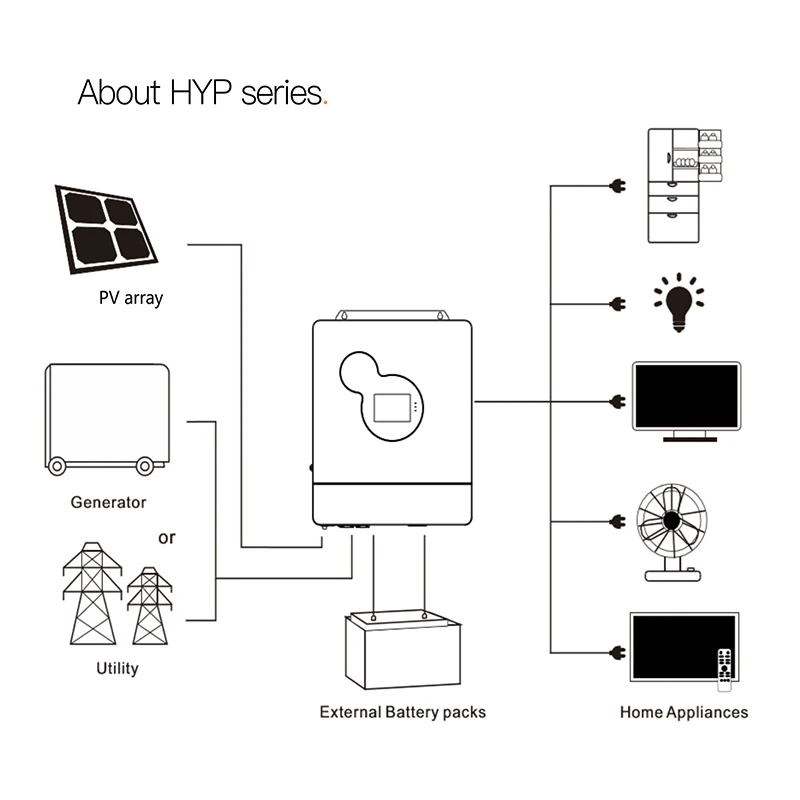

Overview：

Parallel connection method：

Sepecification：

MODEL

HYP4850S100-H

HYP4850U100-H

Parallel mode

Permitted parallel number

1~6

AC mode

Rated input voltage

220/230Vac

110/120Vac

Input voltage range

(170Vac~280Vac) ±2%

(90Vac-280Vac) ±2%

(90Vac~140Vac)±2%

Frequency

50Hz/ 60Hz (Auto detection)

Frequency Range

47±0.3Hz ~ 55±0.3Hz (50Hz);

57±0.3Hz ~ 65±0.3Hz (60Hz);

Overload/short circuit

protection

Circuit breaker

Efficiency

>95%

Conversion time (bypass and inverter)

10ms (typical)

AC reverse protection

Available

Maximum bypass overload

current

40A

63A

Inverter mode

Output voltage waveform

Pure sine wave

Rated output power (VA)

5000

Rated output power (W)

5000

Power factor

1

Rated output voltage (Vac)

230Vac (200/208/220/240Vac

Settable）

120Vac (100/105/110Vac Settable)

Output voltage error

±5%

Output frequency range(Hz)

50Hz ± 0.3Hz

60Hz ± 0.3Hz

Maximum Efficiency

>92%

Overload protection

(102% < load <125%) ±10%: report error and turn off the output after 5 minutes;                                         (125% < load < 150%) ± 10%: report error and turn off the output after 10 seconds;

Load >150% ±10%: report error and turn off the output after 5 seconds;

(102% < load <110%) ±10%: report error and turn off the output after 5 minutes;                                                 (110% < load < 125%) ± 10%: report error and turn off the output after 10 seconds;

(Load >125% ±10%): report error and turn off the output after 5 seconds;

Peak power

10000VA

Loaded motor capability

4HP

Rated battery input voltage

48V (Minimum starting voltage 44V)

Battery voltage range

Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage

recovery… settable on LCD screen)

Power saving mode self-

consumption

Load≤50W

AC Output（Grid）

Rated Output Power (W)

5000W

Max. apparent power (VA)

5000VA

Max. output current (A)

21.7A

41.7A

THDI

＜3%

Rated voltage(V)

230Vac

120Vac

Frequency

50Hz/60Hz

AC charging

Battery type

Lead acid or lithium battery

Maximum charge

current(can be set)

0-60A

0-40A

Charge current error

± 3Adc

Charge voltage range

40 –58Vdc

Short circuit protection

Circuit breaker and blown fuse

Circuit breaker specifications

40A

63A

Overcharge protection

Alarm and turn off charging after 1 minute

PV charging

Maximum PV open circuit

voltage

500Vdc

PV operating voltage range

120-500Vdc

MPPT voltage range

120-450Vdc

Battery voltage range

40-60Vdc

Maximum PV input power

5500W

Maximum PV input current

22A

PV charging current range

(can be set)

100A

Charging short circuit

protection

Blown fuse

Wiring protection

Reverse polarity protection

Hybrid charging Max charger current specifications (AC charger+PV charger)

Max charger current(can be

set)

100A

Certified specifications

Certification

CE(IEC62109-1)、FCC

EMC certification level

EN61000

Operating temperature range

-10°C to 55°C

Storage temperature range

-25°C ~ 60°C

Humidity range

5% to 95% (Conformal coating protection)

Noise

≤60dB

Heat dissipation

Forced air cooling, variable speed of fan

Communication interface

USB/RS485(WiFi/GPRS)/Dry contact control

Dimension (L*W*D)

446.9mm*350mm*133mm

Weight

13KG

Buy Link

Click

Click

WIFI Module：

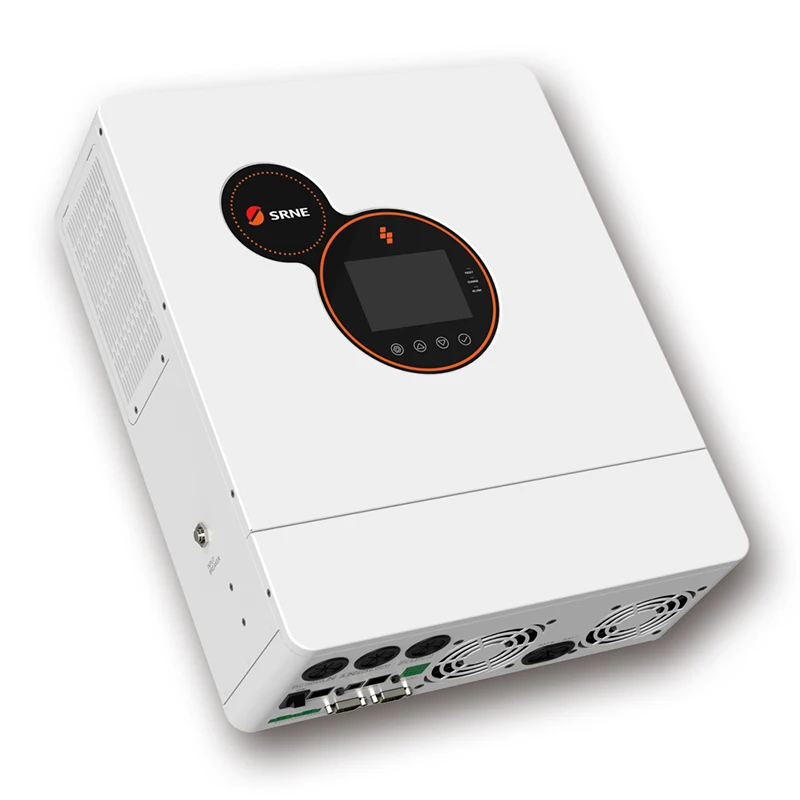

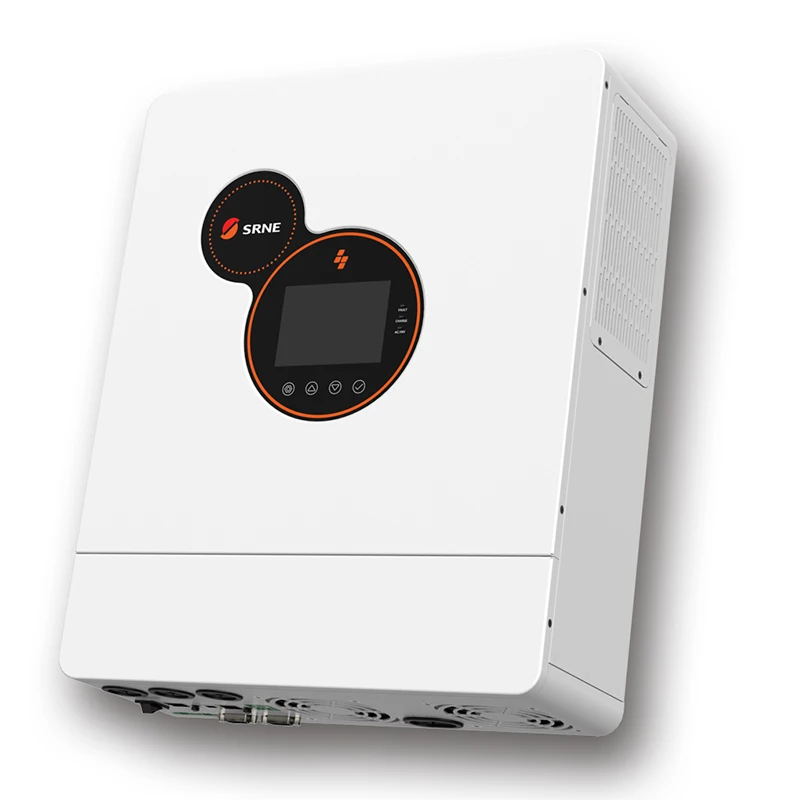

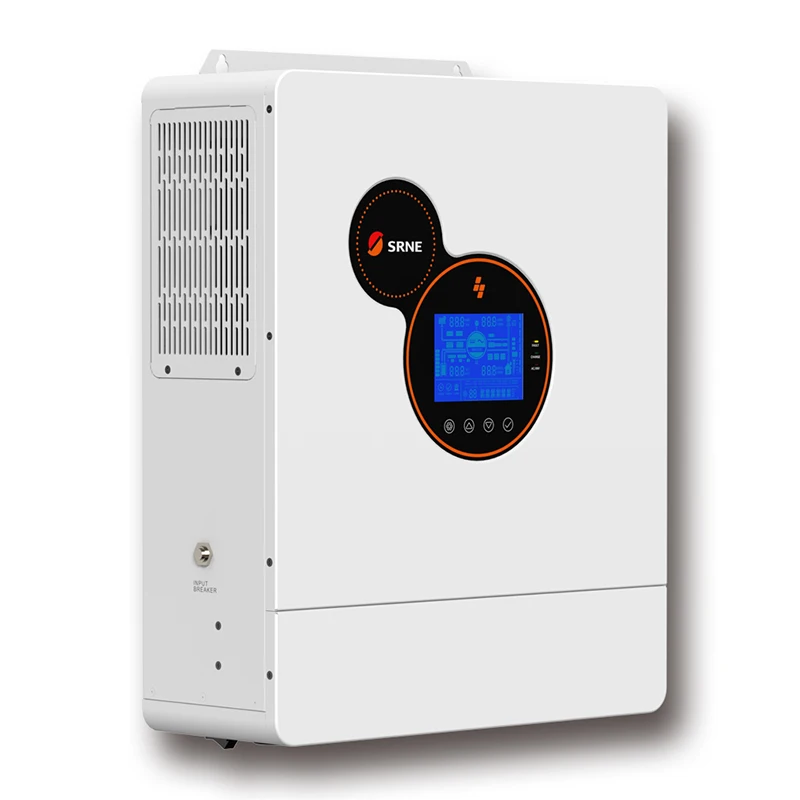

Item Pictures：
