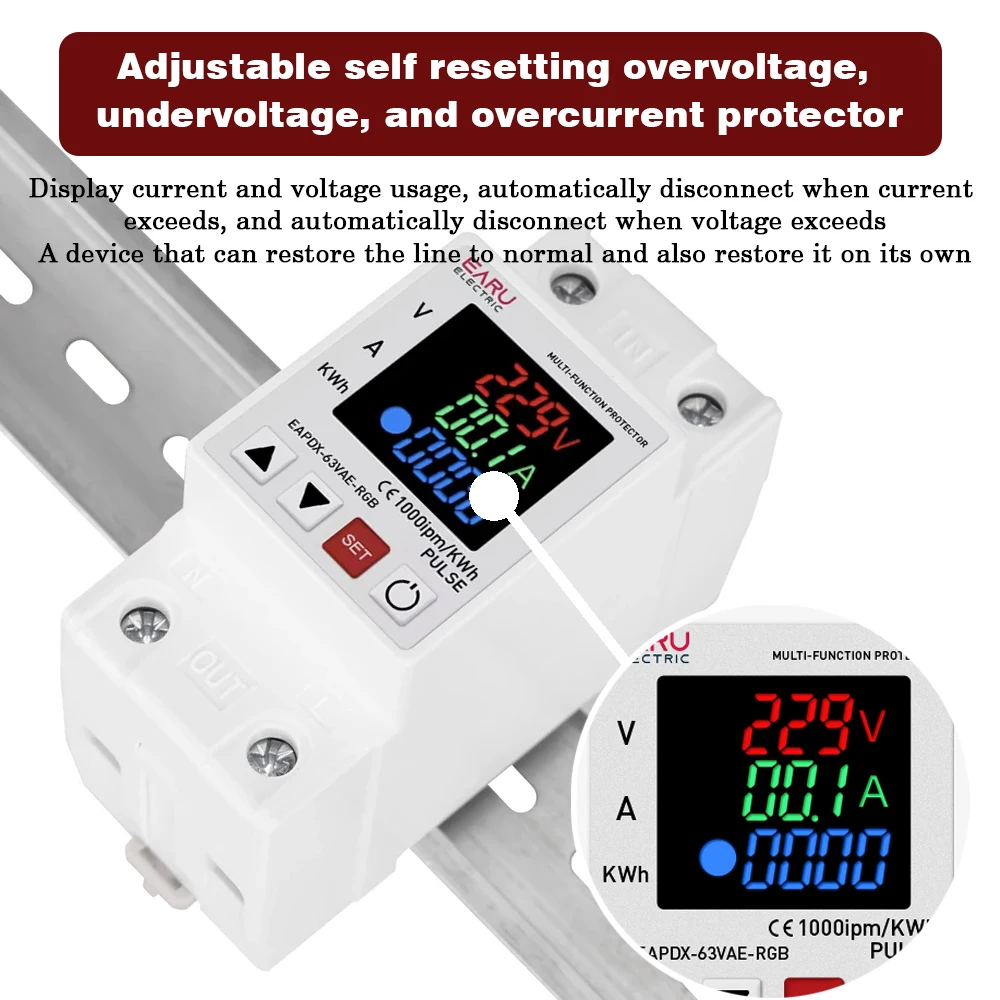

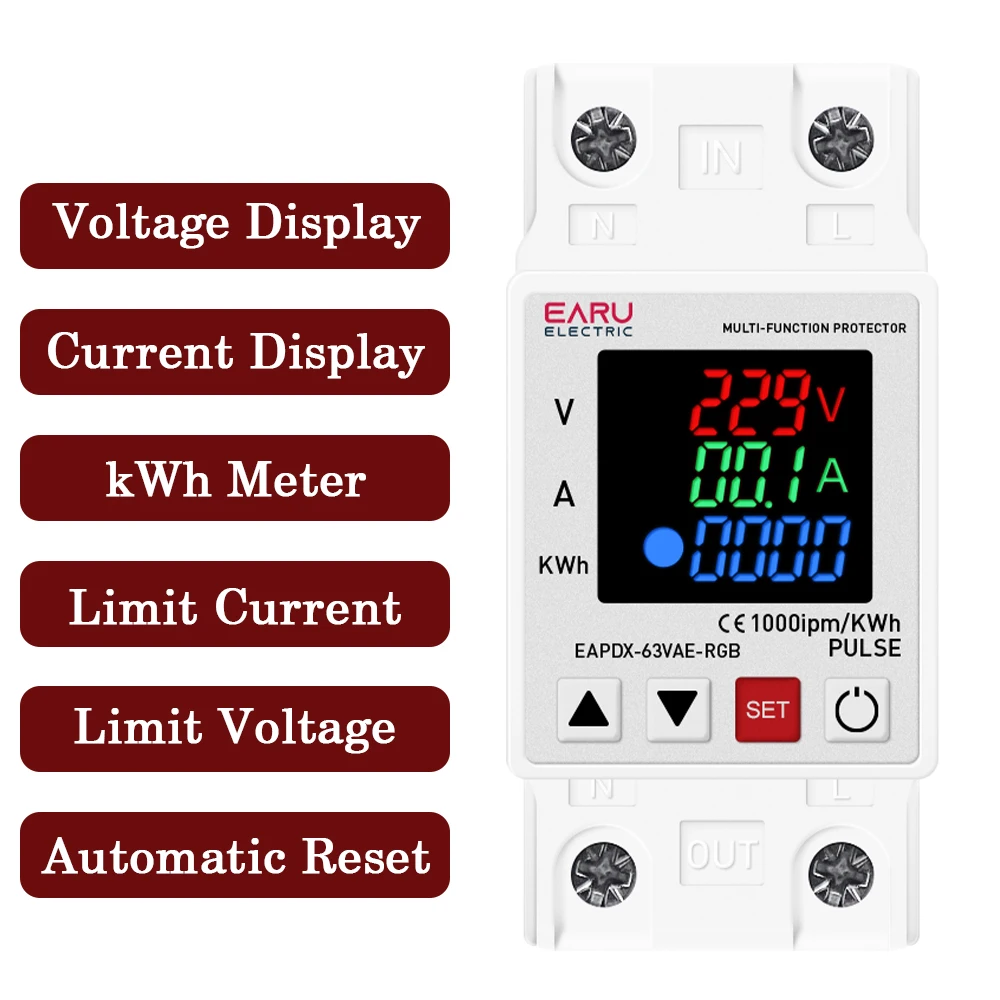

Functions

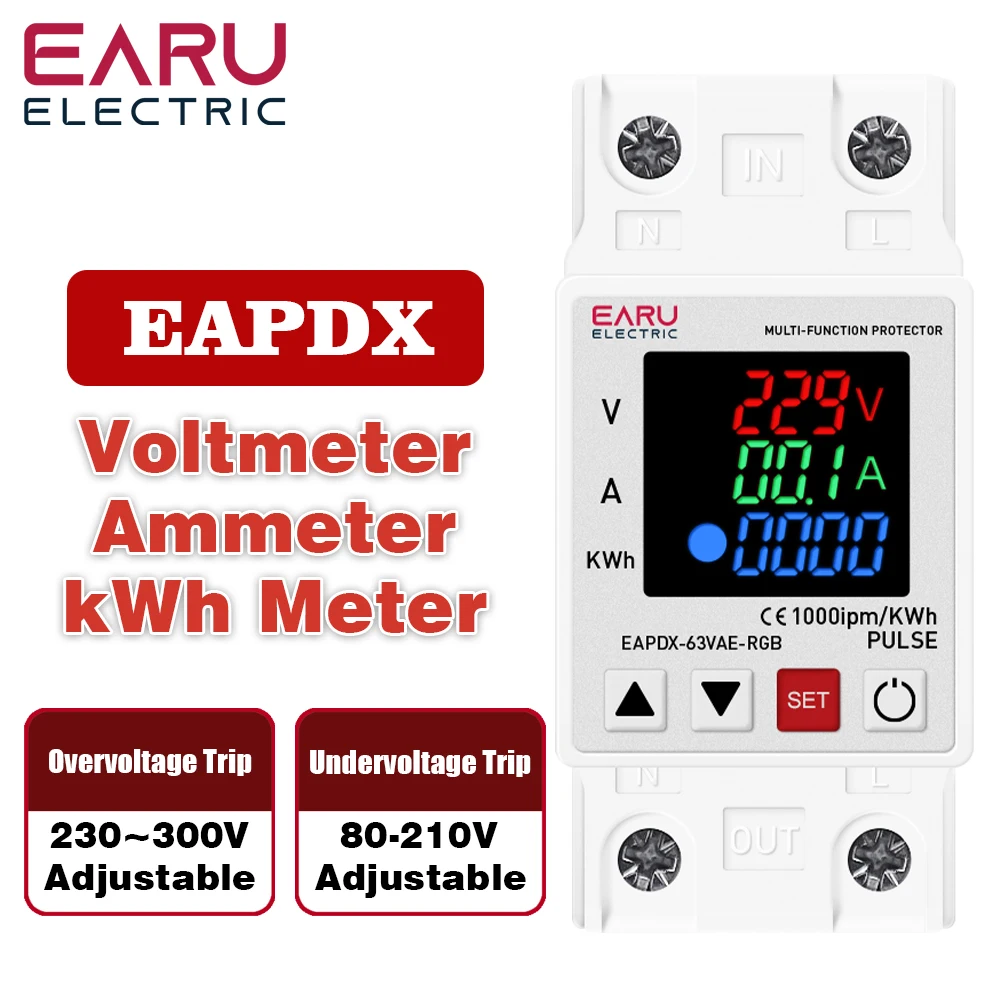

1. Under Voltage Protection:80V-210V Adjustable
2. Over Voltage Protection:230V-300V Adjustable
3. Over Current Protection:1-63A Adjutable

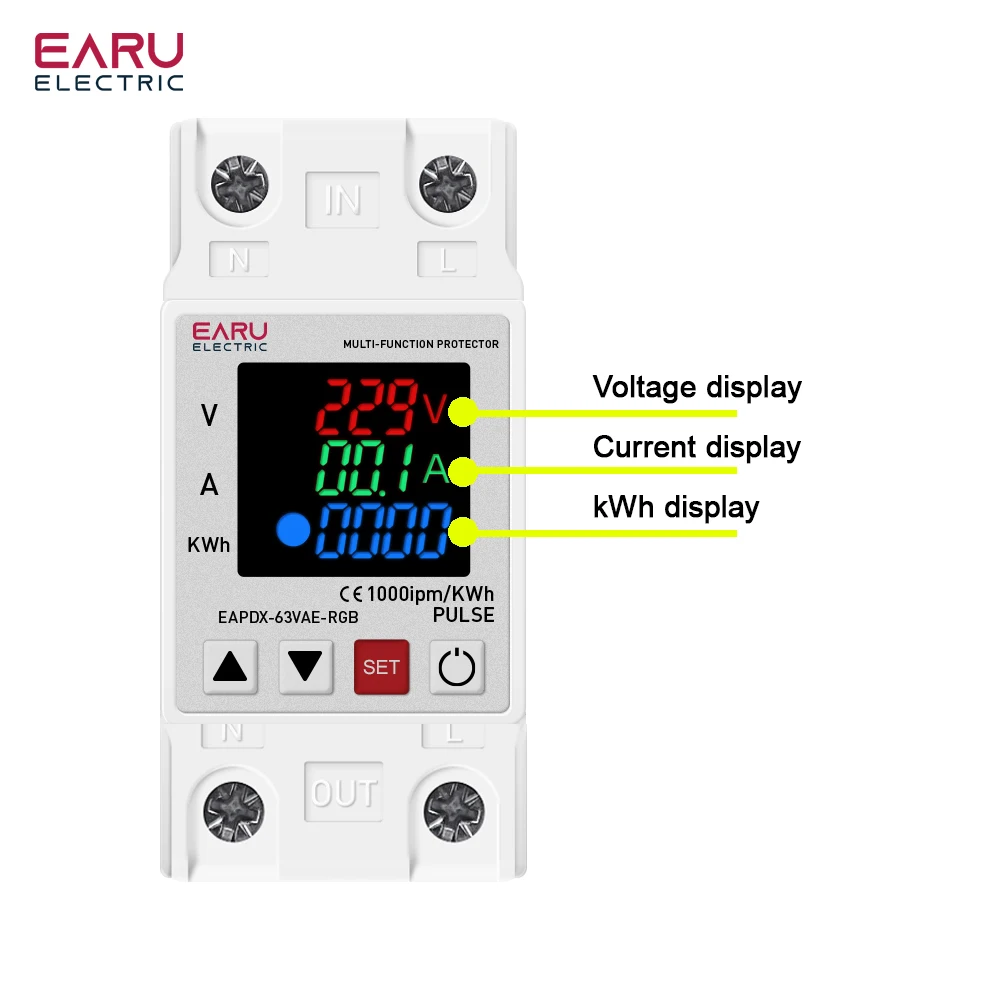

4. Self-recover:1-600S Adjustable
5.Voltmeter
6.Ammeter
7. kWh Meter(0-9999kWh)

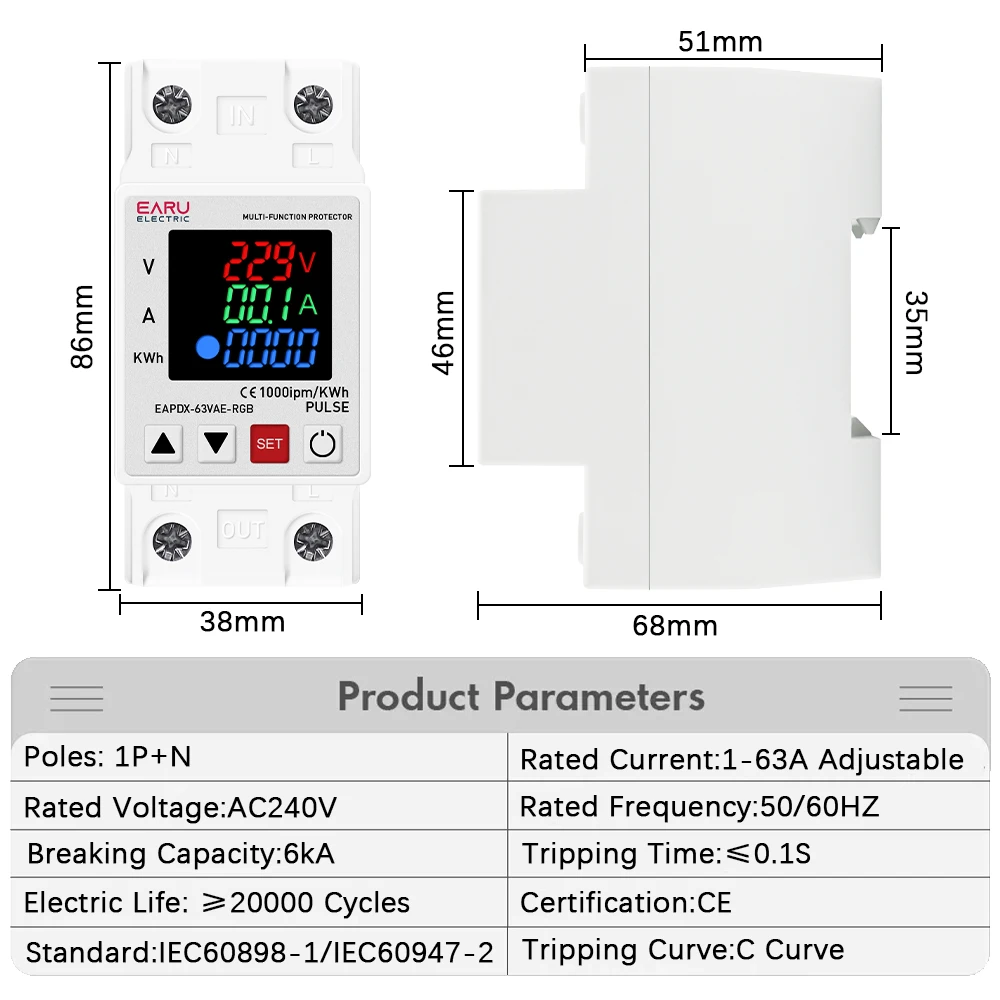

Parameters
Poles: 1P+N
Rated Current: 1-63A Adjustable
Rated Voltage:AC240V
Rated Frequency:50/60HZ
Breaking Capacity: 6kA
Mechnical Life:≥80000 Cycles
Electric Life: ≥20000 Cycles
Inner Structure: Magnetic Latching Relay
Tripping Curve:C Curve
Tripping Time:≤0.1S
Standard:IEC60898-1/IEC60947-2
Certification:CE
Working Temperature:-25-85℃
Working Humidity:≤95%RH
