Technical Datasheet.
Models
J3000L-24
Rated input voltage
220/230VAC
Input voltage range
(170~280VAC)±2% (90-280VAC)±2%
Frequency
50Hz/ 60Hz (Auto detection)
Efficiency
>95%
Inverter Mode
Rated output power (W)
3000
Rated output voltage (VAC)
230VAC
Efficiency
>95%
Rated battery input voltage
24V (Minimum starting voltage 22V)
AC Charging
AC Charging

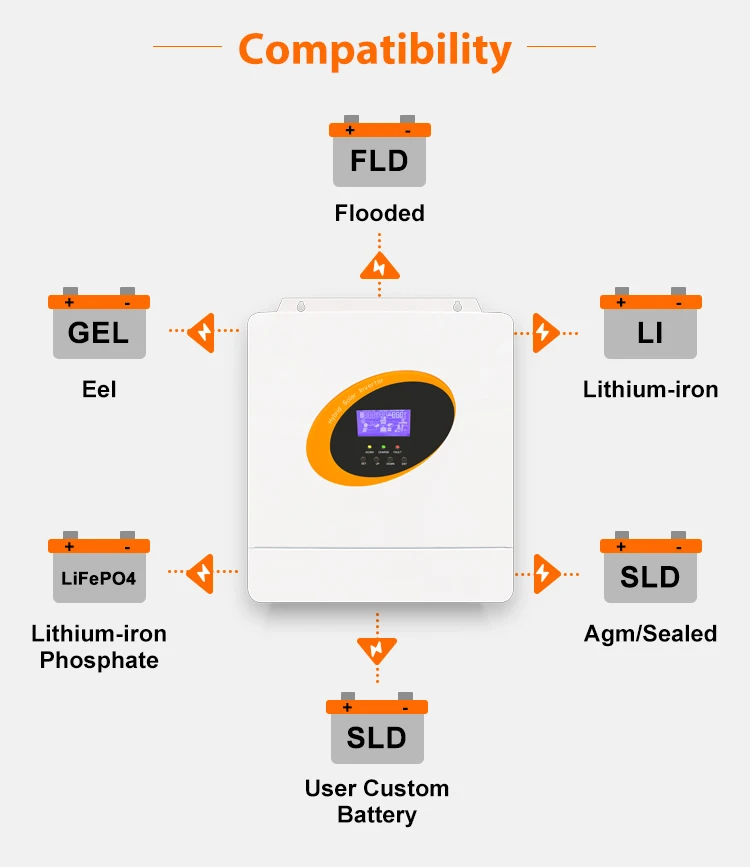

Battery type
Lead acid or lithium battery
Maximum charge current
80A
Charge voltage range
20VDC~33VDC
PV Charging
Maximum PV open circuit voltage
100VDC
MPPT voltage range
30- 85VDC
Battery voltage range
20-33VDC
Rated Maximum PV Input Power
1600W
PV charging current range
0-60A
Certified Specifications
Operating temperature range
-15°C to 55°C
Storage temperature range
-25°C ~ 60°C
Humidity range
5% to 95% (Conformal coating protection)
Communication interface
USB
Size (L*W*D)
385*312*103mm
Net Weight
6.9KG
Details Images.
①
AC Input Port
⑦
Battery Port
②
AC Output Port
⑧
ON/OFF Rocker Switch
③
USB Communication Port
⑨
PV Port
④
Grounding Screw Hole
⑩
Touch Button
⑤
AC Input Overload Protector
⑪
LED Indicator
⑥
Cooling Fan
⑫
LCD Screen

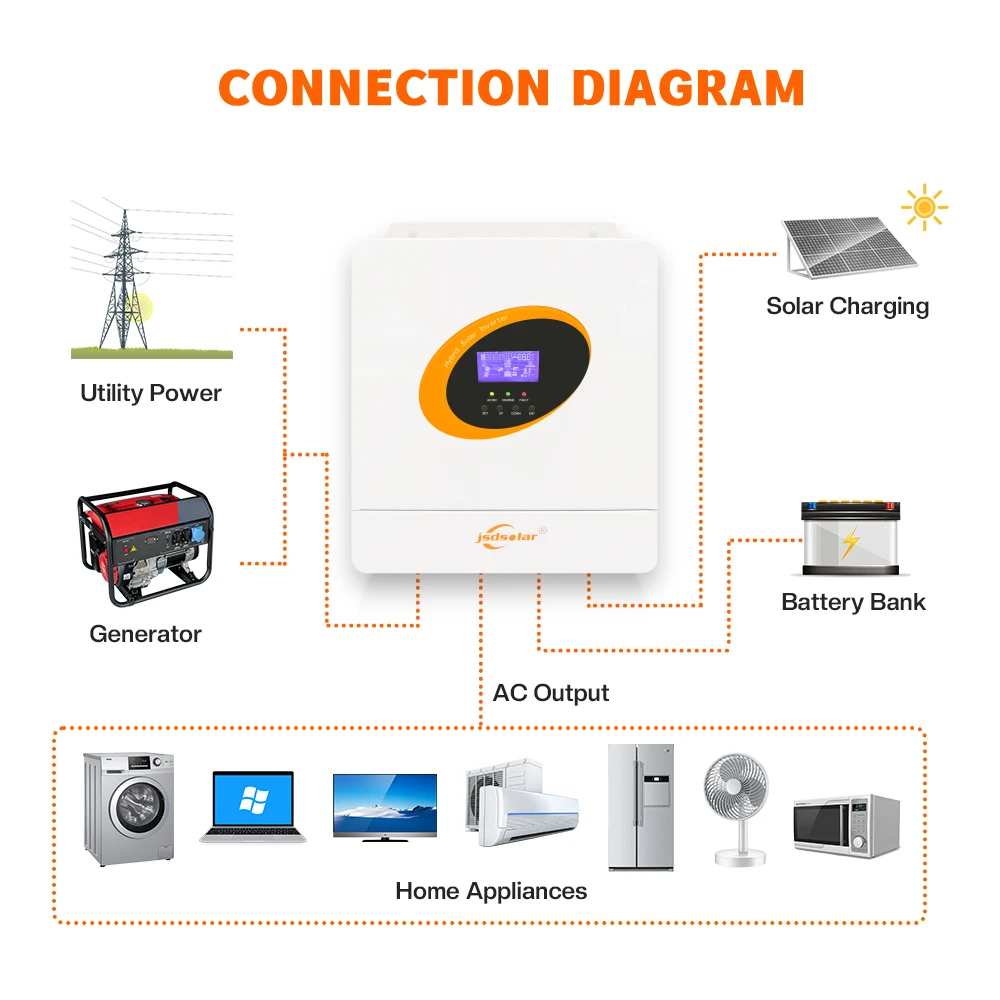

Application
Certificate
Recommend Products
Company Introduction
Exhibition
FAQ
Q1: Why you should choose us? —More than 12 years Electrical Equipment factory experiences —Professional sales team and R & D team —Qualified product and competitive price —Delivery in time —Sincerely services
Q2: How is your after-sale service? —We provide 3-5years warranty and 1% sapre parts for free —We will repair the PCB or provide new one
Q3: What kind of certification you have? —ISO9001,ISO14001, CE,ROHS,UL,and so on —All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time —Standard products could be delivered within 15 days;
Q5. Can I have a sample order? —Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ? —Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pc for sample checking is available.
Q7. Do you support OEM? —Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
