SRNE Hybrid Solar Inverter 8/10KW Max PV 500V 48V To 110/240VAC Suppor Split-phase/single-phase Dual MPPT Max 22A Charge Current
Note :
The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult online customer service.
Introduction：
ASF series is a new type of solar energy storage inverter control inverter integrating solar energy storage & utility
charging and energy storage, AC sine wave output. It adopts DSP control and features high response speed, reliability, and industrial standard through an advanced control algorithm.
Features:
• Supports lead acid battery and li-ion battery connections.
• With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply
access can trigger the activation of the li-ion battery.
• Support split-phase and single-phase pure sine wave output.
• Supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase.
• Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions.
• Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.
• 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.
• With the time-slot charging and discharging setting function, you can set the time period for cutting in/out of mains charging and switch the time period between battery discharging and mains bypass power supply mode.
• Energy saving mode function to reduce no-load energy losses.
• With two output modes of utility bypass and inverter output, with uninterrupted power supply function.
• LCD large screen dynamic flow diagram design, easy to understand the system data and operation status.
• 360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, backfill protection, etc.
• Support CAN, USB, and RS485 communication.
Overview：
Sepecification：
MODEL
ASF4880U180-H
ASF48100U200-H
Adjustable
INVERTER OUTPUT
Rated Output Power
8,000W
10,000W
Max.Peak Power
16,000W
20,000W
Rated Output Voltage
120/240Vac（L1/L2/N/PE split phase）
√
Load Capacity of Motors
5HP
6HP
Rated AC Frequency
50/60Hz
√
Waveform
Pure Sine Wave
Switch Time
10ms（typical）
Parallel capacity
/
BATTERY
Battery Type
Li-ion / Lead-Acid / User Defined
√
Rated Battery Voltage
48Vdc
Voltage Range
40-60Vdc
√
Max.MPPT Charging Current
200A
√
Max.Mains/Generator Charging Current
100A
120A
√
Max.Hybrid Charging Current
180A
200A
√
PV INPUT
Num. of MPP Trackers
2
Max.PV array power
11,000W
Max.input current
22/22A
Max.Voltage of Open Circuit
500Vdc
MPPT Voltage Range
125-425Vdc
MAINS / GENERATOR INPUT
Input Voltage Range
90-140Vac
Frequency Range
50/60Hz
Bypass Overload Current
63A
EFFICIENCY
MPPT Tracking Efficiency
99.90%
Max. Battery Inverter Efficiency
92%
GENERAL
Dimensions
620*435*130mm（2*1.4*0.4ft）
Weight
20kg（44lb）
21kg（46.3lb）
Protection Degree
IP20，Indoor Only
Operating Temperature Range
-15~55℃,>45℃ derated（5~131℉，>113℉ derated）
Noise
<60dB
Cooling Method
Internal Fan
Warranty
2 Years
COMMUNICATION
Embedded Interfaces
RS485 / CAN / USB / Dry contact
√
External Modules（Optional）
Wi-Fi / GPRS
√
CERTIFICATION
Safety
IEC62109-1, IEC62109-2,UL1741
EMC
EN61000-6-1, EN61000-6-3, FCC 15 class B
RoHS
Yes

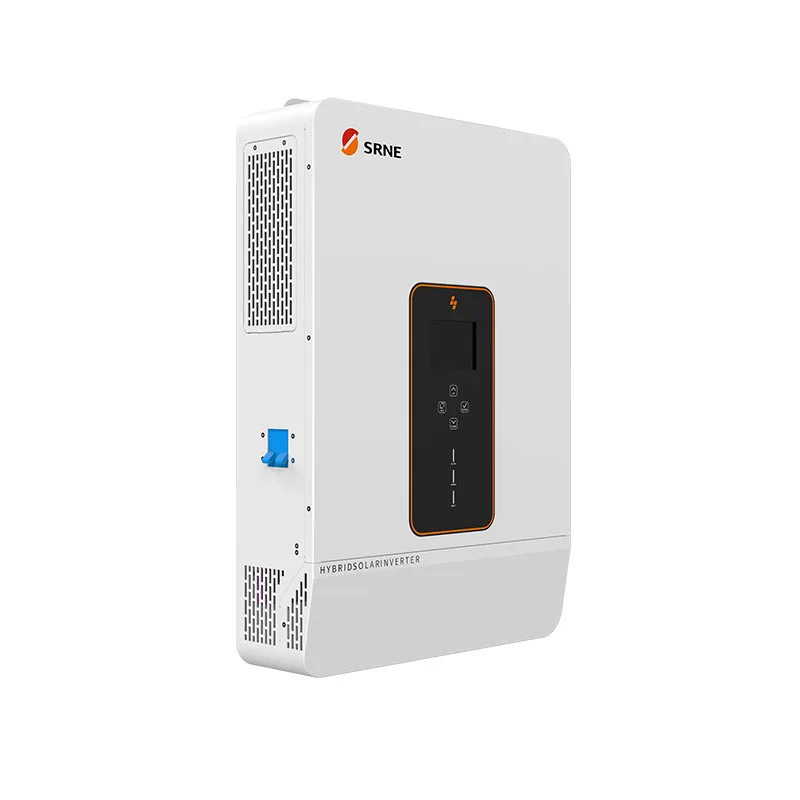

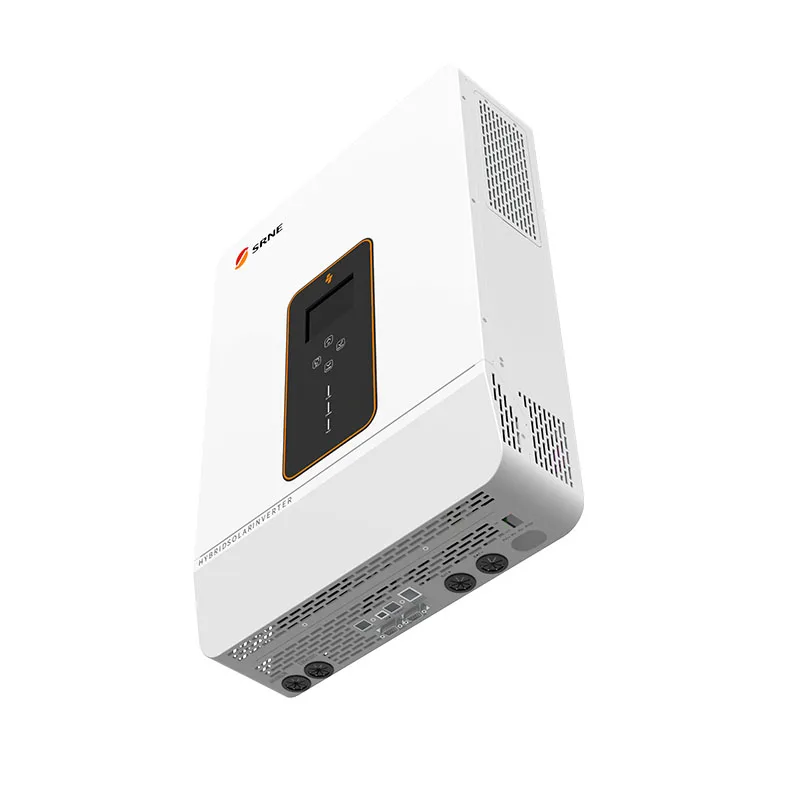

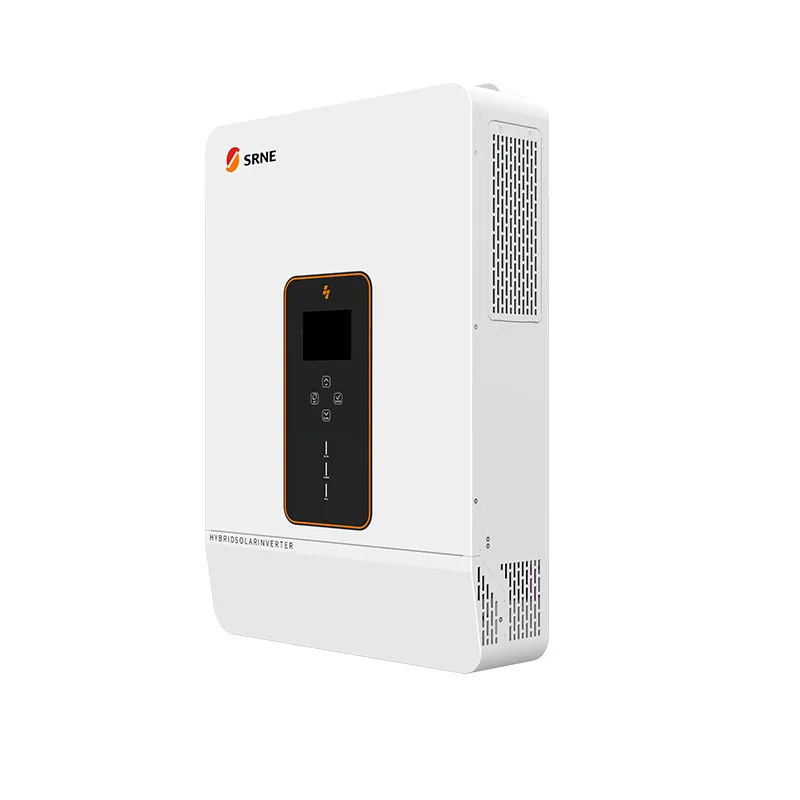

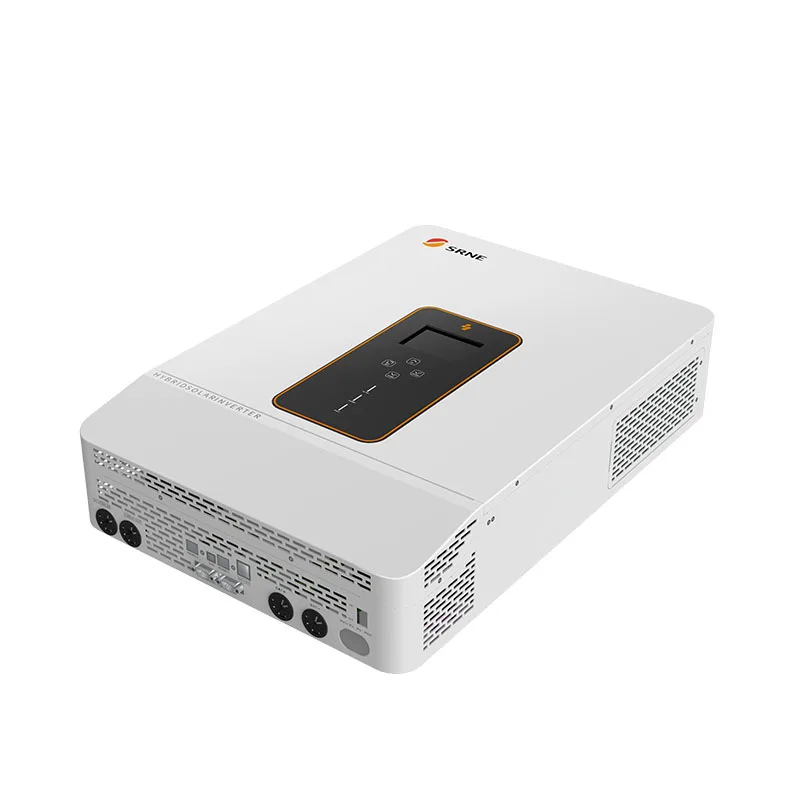

Item Pictures：
