MODEL | PV18-2024 VHM | PV18-3024 VHM | PV18-3048 VHM | PV18-4048 VHM | PV18-5048
VHM |
PV18-5548
VHM |
|
Nominal Battery System Voltage | 24VDC | 48VDC | |||||
INVERTER OUTPUT |
Rated Power | 2000W | 3000W | 3000W | 4000W | 5000W | 5500W |
Surge Power | 4000W | 6000W | 6000W | 8000W | 10000W | 11000W | |
Waveform | Pure Sine Wave | ||||||
AC Voltage Regulation (Batt.Mode) | (220VAC~240VAC)±5% | ||||||
Inverter Efficiency(Peak) | 93% | ||||||
Transfer Time | 10ms (UPS VDE4105) 20ms (APL) | ||||||
AC INPUT |
Voltage | 230VAC | |||||
Selectable Voltage Range | 170~280VAC(UPS) 90~280VAC(APL) 184~253VAC(VDE4105) | ||||||
Frequency Range | 50Hz 60Hz(Auto sensing) | ||||||
BATTERY |
Normal Voltage | 24VDC | 48VDC | ||||
Floating Charge Voltage | 27.4VDC | 54.8VDC | |||||
Overcharge Protection | 30VDC | 60VDC | |||||
SOLAR CHARGER & AC CHARGER |
Maximum PV Array Open Circuit Voltage | 145VDC | |||||
PV Array MPPT Voltage Range | 30~130VDC | 60~130VDC | |||||
Standby Power Consumption | 2W | ||||||
PV Input Power | 2000W | 4000W | |||||
Maximum Solar Charge Current | 80A | ||||||
Maximum Effciency | 98% | ||||||
Maximum AC Charge Current | 20A/30A | 60A | |||||
Maximum Charge Current | 80A | 140A | |||||
MECHANICAL SPECIFICATIONS |
Machine Dimensions(W*H*D)(mm) | 272*355*100 | 297.5*468*125 | ||||
Package Dimensions(W*H*D)(mm) | 540*395*241 | 638*395*241 | |||||
Net Weight(kg) | 10 | 11 | 13.3 | ||||
Gross Weight(kg) | 11.7 | 12 | 16.4 | ||||
OTHER |
Humidity | 5% to 95% Relatiy Humidity (Non-condensing) | |||||
Operating Temperature | 0°C~50°C | ||||||
Storage Temperature | -15°C ~60°C |

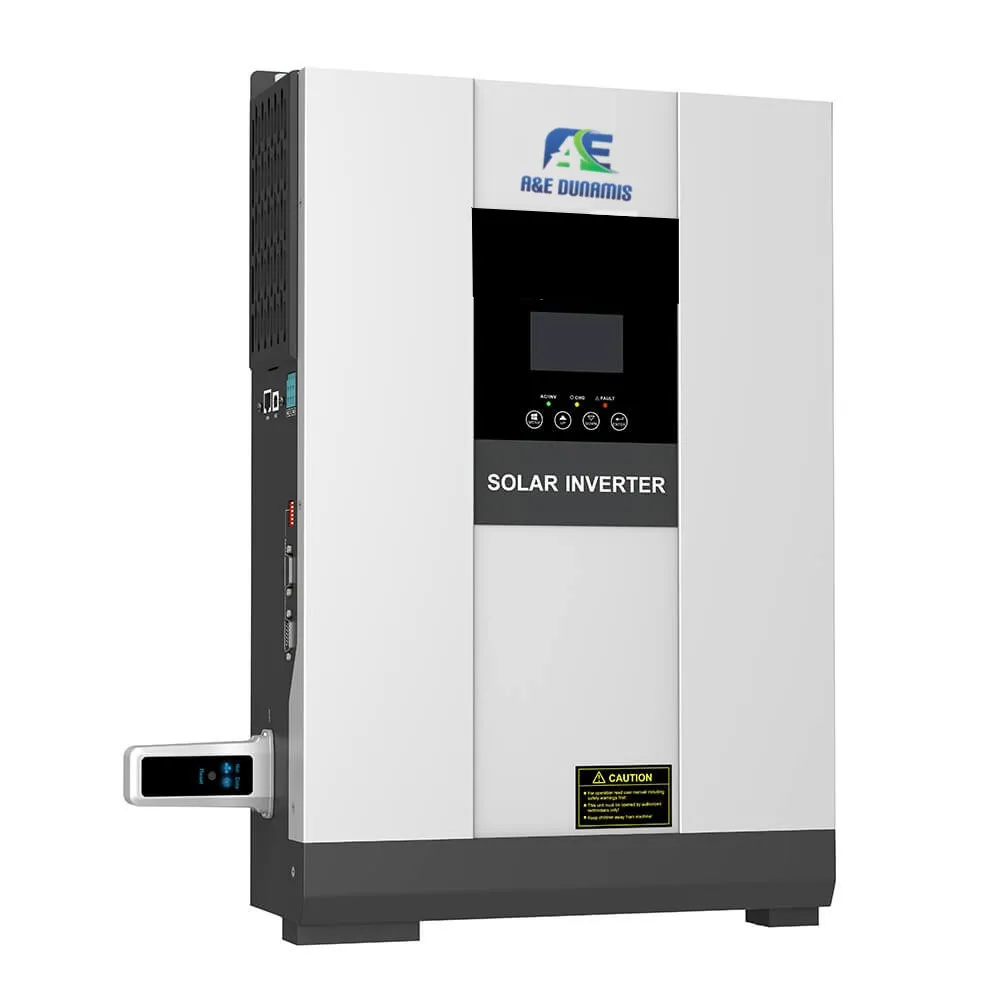

5KVA/48V Transformer less Hybrid Inverter
₦584,000.00 Original price was: ₦584,000.00.₦520,000.00Current price is: ₦520,000.00.
A&E 5KVA/48V Transformerless Hybrid Inverter with inbuilt 80am MPPT Charge Controller
A&E 5KVA/48V Transformerless Hybrid Inverter with inbuilT 80am MPPT Charge Controller is a multi-functional inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support in a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
A&E 5KVA/48V Transformerless Hybrid Inverter with inbuilt 80am MPPT Charge Controller
Features:
- Pure sine wave solar inverter
- Output power factor 1
- Built-in 80A MPPT solar charger
- Built-in anti-dusk kit for harsh environment
- Support parallel operation up to 3 units (available for 3KW-5.5KW 48V)
- WIFI remote monitoring (optional)
- Compatible to generator
A&E 5KVA/48V Transformerless Hybrid Inverter with inbuilt 80am MPPT Charge Controller
Applications
- Home Appliances
- Office Equipment
- Medical Equipment
- Sensitive Equipment
- General Use
A&E 5KVA/48V Transformerless Hybrid Inverter with inbuilt 80am MPPT Charge Controller
